Component Type (ETIM Class)

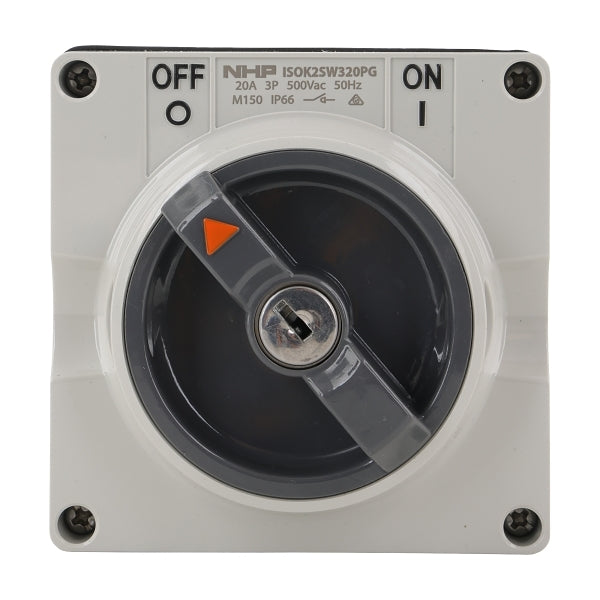

Switch disconnector
Electrical
Rated permanent current Iu20 A
Number of poles3
Frequency50 Hz
Rated operation current Ie at AC-23a, 500 V20 A
Construction
Material housingPlastic
Colour control elementGrey
Degree of protection (IP), front sideIP66
Mechanical
Connectable conductor cross section10-16 mm²
Dimensions
Width101 mm
Depth117 mm
Height101 mm
