Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)

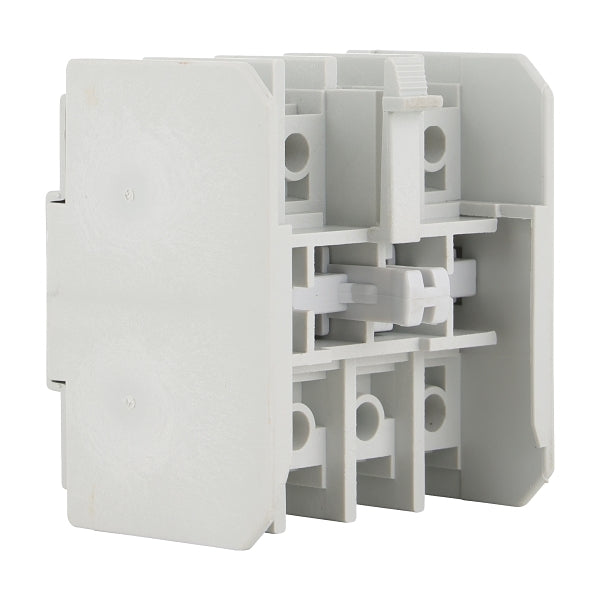

Auxiliary contact block
Electrical
Number of contacts as normally open contact2
Number of contacts as normally closed contact2
Rated operation current Ie at 40 °C Tu10 A
Rated operation current Ie at AC-15, 120 V6 A
Rated operation current Ie at AC-15, 240 V3 A
Rated operation current Ie at AC-15, 400 V2 A
Rated operation current Ie at DC-13, 24 V5 A
Rated operation current Ie at DC-13, 110 V0.8 A
Rated operation current Ie at DC-13, 220 V0.4 A
Type of electric connectionScrew connection
Construction
Mounting methodTop mounting
