Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)

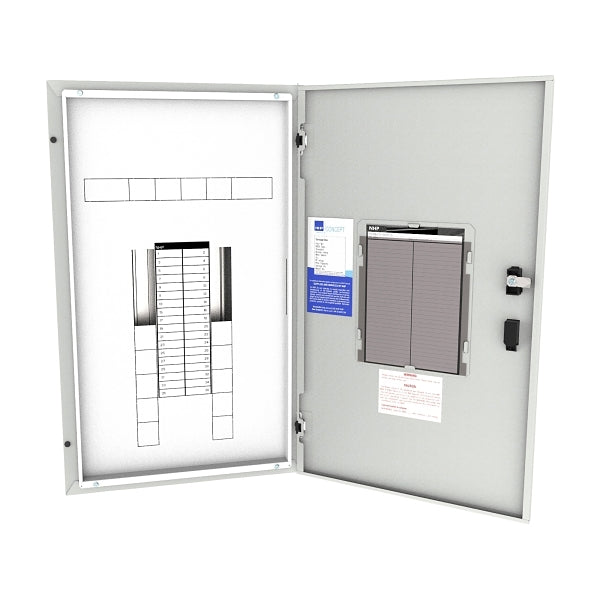

Small distribution board
Electrical
Rated current In250 A
Number of outgoing ways60
Number of poles, 18mm pitch60
Max. rated operation voltage Ue AC415 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp6 kV
Neutral terminal blockYes
Neutral bar rated current250 A
Earthing terminal blockYes
Construction
Spare DIN equipment space (poles)16
Material housingSteel
Material thickness1 mm
ColourGrey
RAL-number7035
Degree of protection (IP)IP40
Type of coverDoor
Material thickness cover1 mm
With lockYes
Mounting methodSurface mounted (plaster)
Mechanical
Impact strengthIK07
Dimensions
Height1080 mm
Width530 mm
Depth153 mm
