Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)

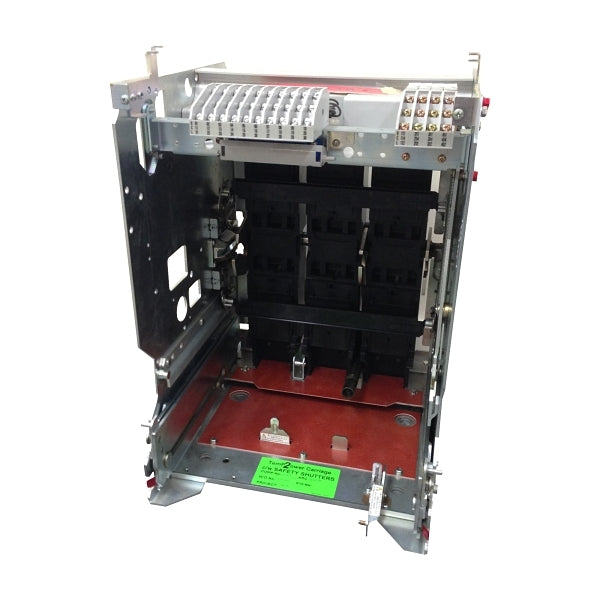

Chassis part power circuit breaker
Electrical
Rated current In1250 A
Number of poles3
Nominal voltage690 V
Rated insulation voltage Ui1000 V
Rated impulse withstand voltage Uimp12 kV
Type of electrical connection of main circuitBolt connection
Number of auxiliary contacts as change-over contact7
Construction
OrientationVertical
Safety shutters fittedYes
Control plug shutter fittedYes
Control terminal cover suppliedYes
Auto trip discharge lever fittedYes
Dimensions
Height460 mm
Width354 mm
Depth385 mm
Weight28 kg
