Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)

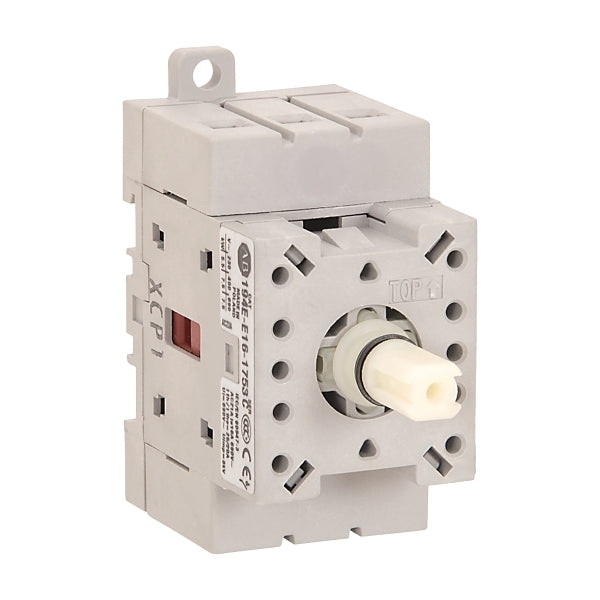

Switch disconnector
Electrical
Max. rated operation voltage Ue AC690 V
Rated permanent current Iu16 A
Number of poles3
Rated operation power at AC-3, 400 V5.5 kW
Rated operation power at AC-23, 400 V7.5 kW
Rated short-time withstand current lcw800 kA
Rated insulation voltage Ui690 V
Rated impulse withstand voltage Uimp8 kV
Type of electrical connection of main circuitScrew connection
Rated operating voltage400-690 V
Conditioned rated short-circuit current Iq20 kA
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Motor drive integratedNo
Voltage release optionalNo
Construction
Device constructionBuilt-in device fixed built-in technique
Degree of protection (IP), front sideIP20
Degree of protection (NEMA)Other
Version as main switchYes
Version as maintenance-/service switchYes
Version as emergency stop installationNo
Version as reversing switchNo
Number of switches1
Suitable for front mounting 4-holeYes
Dimensions
Height64 mm
Width45 mm
Environment
Rated surrounding temperature without derating60 °C
Storage temperature-40-80 °C
