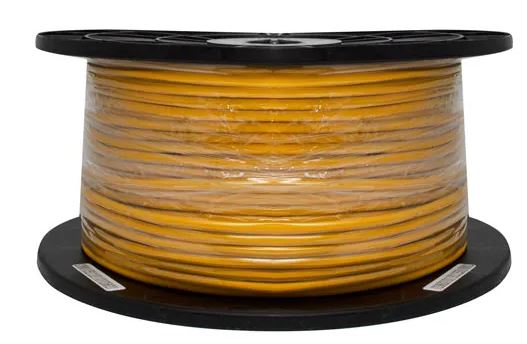

4 Core Speaker Cable, 16 AWG, LSZH Jacket, 152m
This high-performance speaker cable is made with 4 Cores of Annealed bare copper, oxygen-free copper. It has a Gauge of 16 AWG and is made with a durable LSZH Jacket.
FEATURES
- Length: 152m
- Weight: 76kg/km
- External O.D: 5.3 ± 0.05mm
- Packaging: 152m Reel
-
Conductor
- Material: Annealed Bare Copper, Oxygen Free Copper
- Construction: 65x0.16±0.005mm
- Nominal O.D: 1.49mm
- Nominal Cross Section Area: 1.31 mm2
- Gauge: 16AWG
- Max. DCR @ 20C: 14.3 ohm / km
-
Insulation
- Material: Yellow LSZH
- Nominal O.D: 2.10mm±0.05mm
- Nominal Wall Thickness: 0.30mm
- Colour Code: Red, Black, Green & White, 4 Cores Stranded
-
Sheath
- Material: Yellow LSZH Jacket, RAL1021
- Nominal Wall Thickness: 0.55 ±0.05mm
- Operating Temperature Range: -20°C to 75°C
WARRANTY
1-year limited warranty
