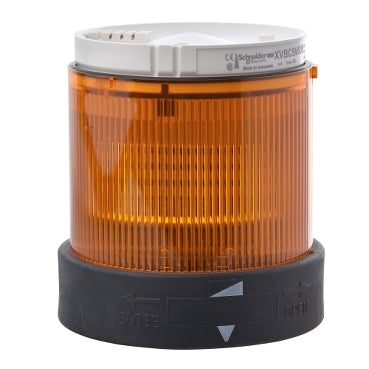

Harmony XVB, Indicator bank, illuminated unit, plastic, orange, 70mm, steady, integral LED, 24V AC/DC

SKU: XVBC2B5
Price on request
Free delivery over $150, $15 flat rate below
Dispatched in 1–2 business days
14-day returns & refunds

Bulk quantities, price-on-application lines or technical questions: we usually reply the same business day.

Trade account holders get tiered pricing applied automatically at checkout. Open a trade account or get in touch.

Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.

Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.

View Data Sheet

Specifications

Design

Range of product

Harmony XVB Universal

Product or component type

indicator bank

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Connections - terminals

screw clamp terminals, <= 1 x 1.5 mm² with cable end

Net weight

0.15 kg

Product certifications

CCC|EAC|CSA C22-2 No 14|UL 508

Standards

IEC 60947-5-1

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-25...50 °C

Ip degree of protection

IP65 on fixing base XVBZ0. conforming to IEC 60529|IP66 on base unit conforming to IEC 60529

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP070907EN

Circularity profile

N/A

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

polycarbonate

Others

Package 1 bare product quantity

1

Beacon or indicator bank unit type

illuminated unit

Signalling type

steady

Mounting diameter

70 mm

Component name

XVBC

Light source

integral LED, orange

Bulb type

protected LED

[us] rated supply voltage

24 V AC/DC

Assembly style

customer assembly, up to 5 units

[ui] rated insulation voltage

250 V conforming to IEC 60947-1

Nominal voltage limit

0.85...1.1 Un conforming to IEC 60947-5-1

Current consumption

< 47 mA AC/DC

[uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

Cad overall width

70 mm

Cad overall height

63 mm

Cad overall depth

70 mm

Pollution degree

2

Protective treatment

TC

Electrical shock protection class

class I on support tube conforming to IEC 61140|class II on base unit conforming to IEC 61140

Nema degree of protection

Type 4X conforming to UL (indoor)

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8 cm

Package 1 width

8 cm

Package 1 length

9.2 cm

Package 1 weight

136 g

Unit type of package 2

S03

Number of units in package 2

36

Package 2 height

30 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

5.554 kg

Unit type of package 3

P06

Number of units in package 3

288

Package 3 height

80 cm

Package 3 width

80 cm

Package 3 length

60 cm

Package 3 weight

53.372 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
