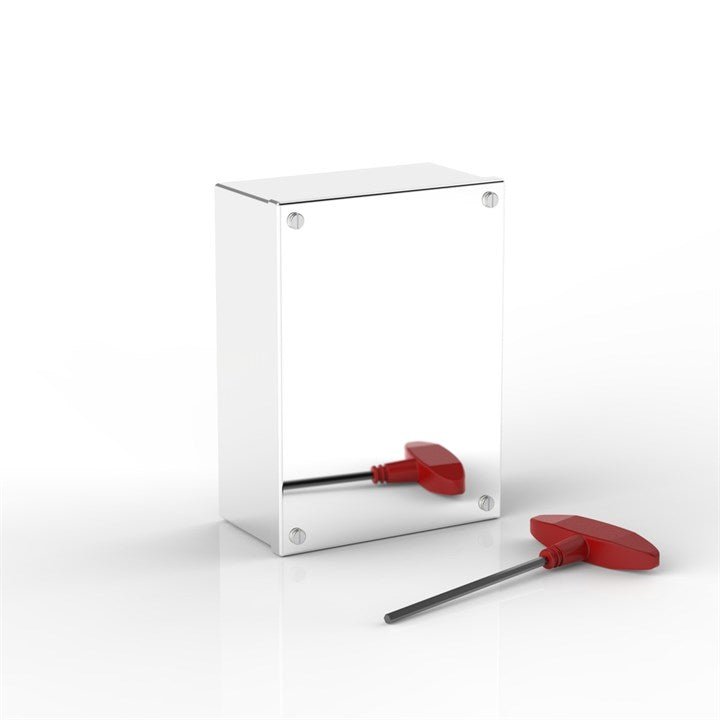

304 stainless steel flat roof terminal and control enclosure with sealed compartment wall fixing points. Suitable for terminal wiring, controls and compact equipment in commercial and industrial electrical work.
Product details
Electrix® Flat Roof Terminal & Control Enclosures, in 304 - V2A - 1.4301 stainless steel, are designed to accommodate terminals & control equipment from a variety of manufacturers.
The unrivalled quality & aesthetics of Electrix's enclosures have made them the preferred choice of worldwide processing companies for over 35 years.
This IP69K / IP66* polished finish terminal & control enclosure, with Electrix's unique sealed compartment wall fixing points installed, is 220 x 160 x 85 (H x W x D mm)
Complete with a gear plate, gasketed lid, captive lid fixing screws, earth terminals & earth link.
Type 1 / 12 / 13 / 4 / 4X*.
Manufacturer specifications
| Material Type |
Stainless Steel |
| Material Grade |
304 - V2A - 1.4301 |
| Material Finish |
Polished |
| Surface Finish (µm Ra) |
< 0.5 |
| Material Thickness (mm) |
1.2 |
| Size (H x W x D mm) |
220 x 160 x 85 |
| Height (mm) |
220 |
| Width (mm) |
160 |
| Depth (mm) |
85 |
| Custom Design |
<p>Custom Designs available on request.</p><ul><li>Custom sizes</li><li>Pre-lasered cable entry holes & laser cut apertures</li><li>Extra hygienic lid fixing screws</li><li>Security lid fixing screws</li></ul><a href="/en-gb/stainless-steel-the-custom-shop/" target="_blank">Click here to visit The Custom Shop.</a> |
| Recessed Cavity |
No |
| Captive Lid Fixings |
Yes |
| Gasket Material |
UL Recognised Neoprene EPDM Closed Cell (One Piece) |
| Lift-off Lid / Cover |
Yes |
| Fixing Method |
M5 Sealed Wall Fixing Points |
| Internal Wall Fixing Points |
4 |
| Gear Plate or DIN Rail Fitted? |
Gear Plate Fitted |
| Gear Plate (H x W mm) |
196 x 136 |
| Gear Plate Material |
3 mm white powder coated Zintec |
| Earthing |
Earth terminals & 1 x earth / ground lead* |
| Approvals |
<img alt="cULus Listed" src="/Images/SpecAttributes/spec_logo_cULus_Listed.png" style="padding: 2px 10px 5px 0px;"/><img alt="NSF" src="/Images/SpecAttributes/spec_logo_NSF.png" style="padding: 2px 10px 5px 0px;"/><img alt="IP69K" src="/Images/SpecAttributes/spec_logo_ip69k.png" style="padding: 2px 10px 5px 0px;"/><img alt="Type 4X" src="/Images/SpecAttributes/spec_logo_type_4x.png" style="padding: 2px 10px 5px 0px;"/><img alt="IP66" src="/Images/SpecAttributes/spec_logo_ip66.png" style="padding: 2px 10px 5px 0px;"/><img alt="CE" src="/Images/SpecAttributes/spec_logo_CE_Marking.png" style="padding: 2px 10px 5px 0px;"/><img alt="UKCA" src="/Images/SpecAttributes/spec_logo_UKCA_Marking.png" style="padding: 2px 10px 5px 0px;"/> |
| UL Information |
(Junction & Pull Box) 61ZB, In accordance with UL50/50E, CSA C22.2 No. 94.1 & 2*, File Number: E233528 |
| CE Information |
EN 60670-1, EN 60529, EN 63000 |
| Hygiene Standards |
NSF/ANSI/3A 14159-1 Hygiene Requirements for, the Design of Meat and Poultry Processing Equipment |
| Environmental Rating |
IP66 / IP69K*, Type 1 / 12 / 13 / 4 / 4X* |
| Pack Quantity |
1 |
| Supplied With |
Sealed Compartment Wall Fixing Points, Gear Plate, Lid Gasket, Lid Fixings, Earth Terminals & Earth Link |
| Ideally Suited For |
Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more |
| Alternative Material Finish / Grade |
Satin (Brushed) 304 - V2A - 1.4301 or Satin (Brushed) 316L - V4A - 1.4404 |
| Weight (kg) |
2.03 |
| Fine Print |
*IP/TYPE rating is only maintained when all apertures are adequately sealed., , It is the installer's responsibility to check that the earth / ground lead is suitable for the intended application. |
Specifications from Electrix International product data.
