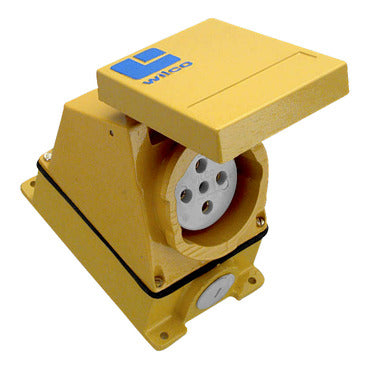

Metal Clad, Socket Outlet 1 Gang, 63A, 500V, 5 Round Sockets***EMAIL/TEXT FOR PRICING***
Regular price
$0.00
inc. GST
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
View Data Sheet
Specifications
Design
Range of product
Wilco
Product brand
Clipsal
Physical
Device mounting
surface
Mounting mode
external mounting
[in] rated current
63 A
[ue] rated operational voltage
500 V 50/60 Hz conforming to EN 60309-2
Socket number
1
Depth
182 mm
Width
115 mm
Height
183 mm
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP120506EN
Circularity profile
N/A
Material
Material
cast aluminium
Others
Package 1 bare product quantity
1
Voltage colour
black
Duration
7 h
Socket-outlet type
A4
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
11 cm
Package 1 width
18.4 cm
Package 1 length
18.4 cm
Package 1 weight
3197 g
Unit type of package 2
CAR
Number of units in package 2
2
Package 2 height
13.2 cm
Package 2 width
20 cm
Package 2 length
39.5 cm
Package 2 weight
6.59 kg
