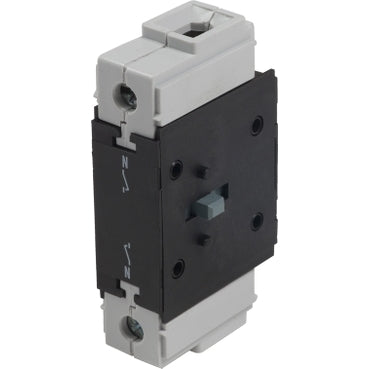

TeSys Mini-Vario, TeSys VARIO - additional neutral block - 80 A - for V3 / V4

SKU: VZ12
Price on request
Free delivery over $150, $15 flat rate below
Dispatched in 1–2 business days
14-day returns & refunds

Bulk quantities, price-on-application lines or technical questions: we usually reply the same business day.

Trade account holders get tiered pricing applied automatically at checkout. Open a trade account or get in touch.

Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.

Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.

View Data Sheet

Specifications

Design

Range

TeSys

Product or component type

additional neutral block

Product compatibility

V3|V4

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Range compatibility

TeSys TeSys VARIO switch disconnector

[ue] rated operational voltage

690 V AC 50/60 Hz

Mechanical durability

30000 cycles

Electrical durability

30000 cycles DC-1...5|30000 cycles AC-21

Connections - terminals

screw clamp terminals16-16 mm² - flexible - with cable end|screw clamp terminals25-25 mm² - solid

Height

83 mm

Width

20 mm

Depth

46 mm

Net weight

0.1 kg

Standards

IEC 60947-3

Product certifications

GL|UL|CSA|UKCA

Ip degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

-20...50 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2211001

Circularity profile

N/A

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Package 1 bare product quantity

1

Device short name

VZ

Performance level

high performance

Poles description

1N

Contacts type and composition

1 NO

Contact operation

early make, late break

Network type

AC|DC

Network frequency

50/60 Hz

Mounting location

left|right

[uimp] rated impulse withstand voltage

6 kV

[ith] conventional free air thermal current

80 A

Tightening torque

4 N.m - on screw clamp terminals

Compatibility code

neutral pole module

Protective treatment

TC

Mechanical robustness

vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6|shocks 11 ms (15 gn) conforming to IEC 60068-2-27

Fire resistance

960 °C conforming to IEC 60695-2-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.59 cm

Package 1 width

3.81 cm

Package 1 length

8.89 cm

Package 1 weight

0.09 kg

Unit type of package 2

S02

Number of units in package 2

69

Package 2 height

15 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

6.28 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
