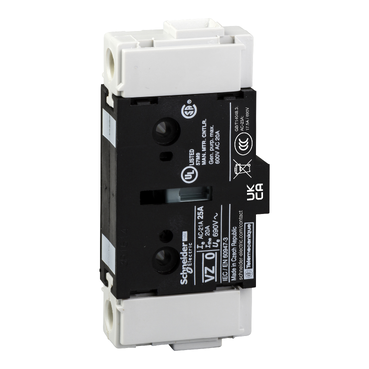

TeSys Mini-Vario, TeSys VARIO - additional pole - 20 A - for V01

SKU: VZ01
Price on request
Free delivery over $150, $15 flat rate below
Dispatched in 1–2 business days
14-day returns & refunds

Bulk quantities, price-on-application lines or technical questions: we usually reply the same business day.

Trade account holders get tiered pricing applied automatically at checkout. Open a trade account or get in touch.

Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.

Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.

View Data Sheet

Specifications

Design

Range

TeSys

Product or component type

additional pole

Product compatibility

V01

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Range compatibility

TeSys TeSys VARIO switch disconnector

[ue] rated operational voltage

690 V AC 50/60 Hz

Mechanical durability

100000 cycles

Electrical durability

100000 cycles AC-21|30000 cycles DC-1...5

Connections - terminals

power circuit: screw clamp terminals6-6 mm² - flexible - with cable end|power circuit: screw clamp terminals10-10 mm² - solid

Height

74 mm

Width

16 mm

Depth

35 mm

Net weight

0.05 kg

Standards

IEC 60947-3

Product certifications

GL|CSA|UL|UKCA

Ip degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

-20...50 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2211001

Circularity profile

N/A

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Package 1 bare product quantity

1

Device short name

VZ

Performance level

high performance

Poles description

1P

Contacts type and composition

1 NO

Network type

DC|AC

Network frequency

50/60 Hz

Suitability for isolation

yes

Mounting location

left|right

[uimp] rated impulse withstand voltage

8 kV

[ith] conventional free air thermal current

20 A

[ithe] conventional enclosed thermal current

16 A

Tightening torque

power circuit: 2.1...2.1 N.m - on screw clamp terminals

Compatibility code

main pole module

Protective treatment

TC

Mechanical robustness

vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6|shocks 11 ms (30 Gn) conforming to IEC 60068-2-27

Fire resistance

960 °C conforming to IEC 60695-2-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.7 cm

Package 1 width

9.0 cm

Package 1 length

5.5 cm

Package 1 weight

46.0 g

Unit type of package 2

S02

Number of units in package 2

69

Package 2 height

15.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

3.576 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Pvc free

Yes

Halogen content performance

Halogen free product
