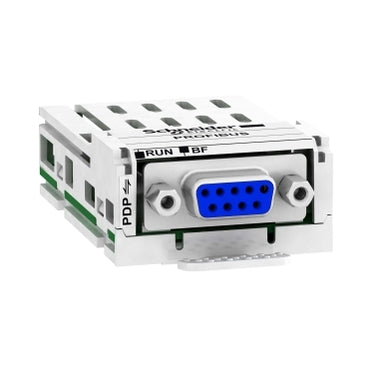

Lexium 32, PROFIBUS DP communication module

SKU: VW3A3607
Price on request
Free delivery over $150, $15 flat rate below
Dispatched in 1–2 business days
14-day returns & refunds

Bulk quantities, price-on-application lines or technical questions: we usually reply the same business day.

Trade account holders get tiered pricing applied automatically at checkout. Open a trade account or get in touch.

Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.

Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.

View Data Sheet

Specifications

Design

Range of product

Altivar

Product or component type

communication module

Product compatibility

Lexium 32M

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Range compatibility

Altivar 32|Altivar Machine ATV340 except Sercos drives|Altivar Easy 610|Lexium 32|Altivar Process ATV900|Altivar Process ATV600|Altivar Machine ATV320|Altivar Process Modular

Communication port protocol

Profibus DP V1

Standards

IEC 61800-7-201 (CiA 402)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP2010009EN

Circularity profile

N/A

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity

1

Accessory / separate part category

communication accessories

Electrical connection

1 female connector SUB-D 9

Transmission rate

9.6 kbps...12 Mbps

Addressing

1...126 configurable by graphic terminal/SoMove software|configuration settings

Communication service

4 configurable telegrams|mapping of the process data from the master|parameters management compliant with PROFIdrive V4.1|several DP V1 messaging modes|drive profile native ATV32 conforming to IEC 61800-7-201 (CiA 402)

Display type

1 LED for RUN|1 LED for bus fault (BF)

Alarm function

diagnostic data with VSD status|host drive handled from two masters (MS0 and MS1)|standard identification and maintenance requests

Bus profile

PROFIdrive|CiA 402

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.700 cm

Package 1 width

6.100 cm

Package 1 length

9.000 cm

Package 1 weight

61.000 g

Unit type of package 2

S03

Number of units in package 2

100

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

6.643 kg

Pvc free

Yes
