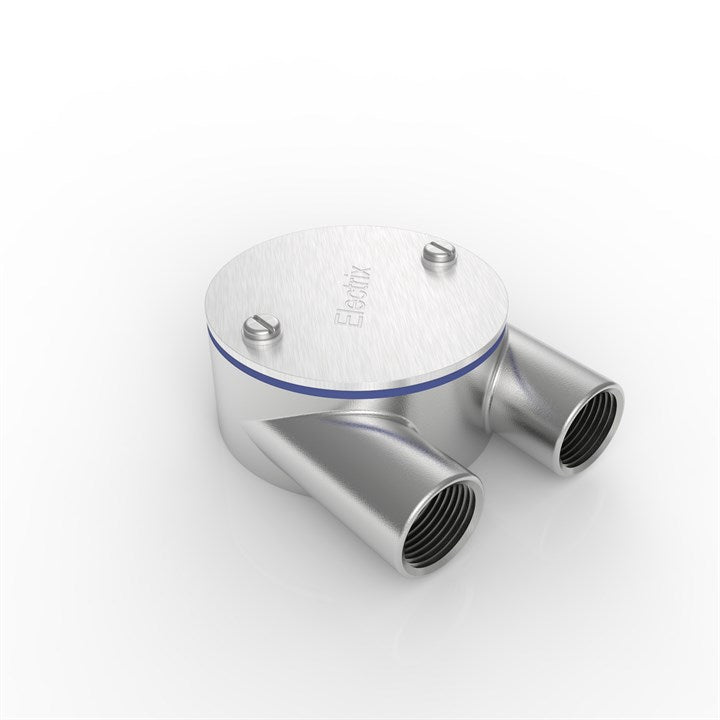

Electrix® Metric Conduit Branch Two Way Boxes, in 316C16F stainless steel with a 316L - V4A - 1.4404 stainless steel lid, can be used to change direction during an installation, whilst the removable lid provides access for inspection and installation purposes.
The world's first complete Stainless Steel Conduit System, invented by Electrix®, is known for its unrivalled quality and aesthetics.
Since the system was launched over 35 years ago, it has been specified by the world's largest companies, for projects ranging from oil rigs to monuments, tunnels to chemical processing plants.
This IP69K / IP67* branch two way box, complete with an internal earth point, is compatible with our 20 mm Metric Conduit System.
Each branch two way box is supplied with a lid, gasket, screws & washers.
Material Information
-
Material Type: Stainless Steel
-
Material Grade: Lid: 316L - V4A - 1.4404
Base: 316C16F
-
Material Finish: Lid: Satin (Brushed)
Base: Electropolished
Dimensions
-
Conduit Ø (mm): 20
-
Size Ø (mm): 20
Conduit Information
-
Thread Type: Metric
-
Female Thread: Metric
-
Thread Details: ISO form 1.5 mm pitch
-
Conduit Box Ø (mm): 60.3
-
Gasket Material: 2 mm Neoprene Rubber
-
Number of Lid Fixings: 2
Ratings & Standards
-
Approvals:
-
UL Information:
File Number: E233497
Conduit Systems for Cable Management
Certified to IEC Standards
-
Environmental Rating: IP69K / IP67*
-
Operating Temperature (without Impact):
-25°C to +150°C (-13°F to +302°F)
(with Blue Silicone Gasket)
-15°C to +90°C (+5°F to +194°F)
(with Black Neoprene Gasket)
For Use With
General Information
-
Supplied With: Lid, Gasket & Lid Fixings
-
Ideally Suited For: Offshore, Chemical, Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more
-
Compatible With: Metric Conduit
-
Pack Quantity: 1
-
Weight (kg): 0.36
-
Commodity Code: 73071990
-
Fine Print: *IP rating is only maintained when all apertures are adequately sealed.
In order to achieve this IP rating, the use of a suitable thread sealant is required on the final 3x threads of engagement.
Earth / ground continuity must be maintained at all times.
-
Disclaimer: Images are representative of range and for illustration purposes only. Please check the full specifications for more information. All dimensions are subject to tolerances - please refer to the technical drawings.
Manufacturer specifications
| Material Type |
Stainless Steel |
| Material Grade |
Lid: 316L - V4A - 1.4404, Base: 316C16F |
| Material Finish |
Lid: Satin (Brushed), Base: Electropolished |
| Conduit Ø (mm) |
20 |
| Size Ø (mm) |
20 |
| Thread Type |
Metric |
| Female Thread |
Metric |
| Thread Details |
ISO form 1.5 mm pitch |
| Conduit Box Ø (mm) |
60.3 |
| Gasket Material |
2 mm Blue Silicone Rubber (FDA) |
| Number of Lid Fixings |
2 |
| Approvals |
<img alt="UL Certified" src="/Images/SpecAttributes/spec_logo_UL_Certified.png" style="padding: 2px 10px 5px 0px;"><img alt="IP69K" src="/Images/SpecAttributes/spec_logo_ip69k.png" style="padding: 2px 10px 5px 0px;"/><img alt="IP67" src="/Images/SpecAttributes/spec_logo_ip67.png" style="padding: 2px 10px 5px 0px;"/><img alt="CE" src="/Images/SpecAttributes/spec_logo_CE_Marking.png" style="padding: 2px 10px 5px 0px;"><img alt="UKCA" src="/Images/SpecAttributes/spec_logo_UKCA_Marking.png" style="padding: 2px 10px 5px 0px;"> |
| UL Information |
<p>File Number: E233497</p><p>Conduit Systems for Cable Management, Certified to IEC Standards</p> |
| Environmental Rating |
IP69K / IP67* |
| Operating Temperature (without Impact) |
<p>-25°C to +150°C (-13°F to +302°F), (with Blue Silicone Gasket)</p> |
| For Conduit Ø (mm) |
20 |
| Pack Quantity |
1 |
| Supplied With |
Lid, Gasket & Lid Fixings |
| Ideally Suited For |
Offshore, Chemical, Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more |
| Compatible With |
Metric Conduit |
| Weight (kg) |
0.36 |
| Fine Print |
*IP rating is only maintained when all apertures are adequately sealed., In order to achieve this IP rating, the use of a suitable thread sealant is required on the final 3x threads of engagement., Earth / ground continuity must be maintained at all times. |
Specifications from Electrix International product data.
