TSB-D 610-86 304 | Stand-Off Support Bracket
TSB-D 610-86 304 | Stand-Off Support Bracket
Electrix

TSB-D 610-86 304 | Stand-Off Support Bracket

In stock
$254.72 AUD inc. GST
Free delivery over $150, $15 flat rate below
Dispatched in 1–2 business days
14-day returns & refunds

Bulk quantities, price-on-application lines or technical questions: we usually reply the same business day.

Trade account holders get tiered pricing applied automatically at checkout. Open a trade account or get in touch.

Product overview

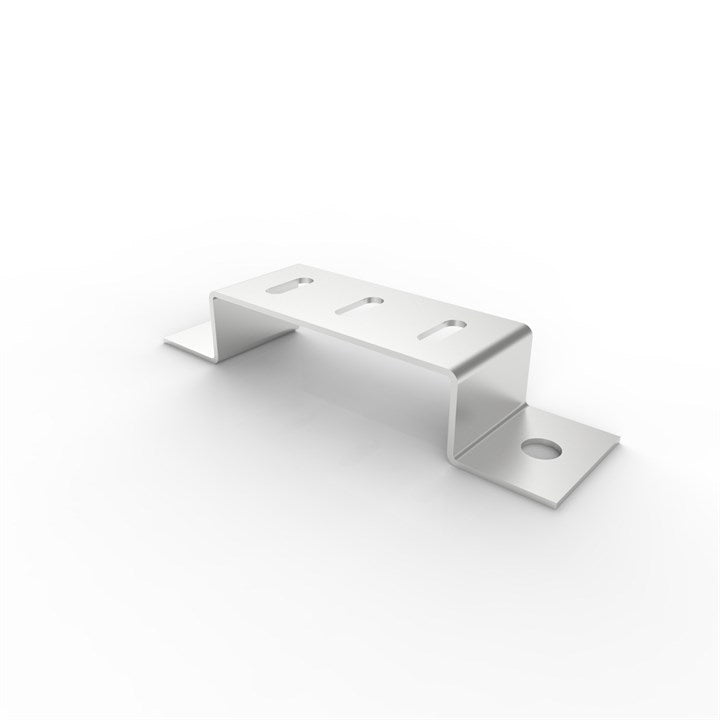

The TSB-D 610-86 304 Stand-Off Support Bracket is a stainless steel support bracket for mounting compatible cable tray away from the fixing surface. It helps create a strong, tidy cable-management installation with clearance for services and maintenance.

Key features

  • Stand-off support bracket for cable tray systems
  • 304 stainless steel for general commercial and industrial use
  • Provides support while maintaining clearance from the wall or mounting surface
  • Suitable for wide 610 mm tray applications where a 86 mm stand-off is required

Typical applications

  • Commercial electrical risers and service corridors
  • Plant rooms, workshops and industrial facilities
  • Stainless cable tray support installations

Technical specifications

  • Product code: TSB-D 610-86 304
  • Type: Stand-off support bracket
  • Material: 304 stainless steel
  • Nominal tray width: 610 mm
  • Stand-off: 86 mm

Manufacturer specifications

Material Type Stainless Steel
Material Grade 304 - V2A - 1.4301
Material Finish Dull (2B)
Surface Finish (µm Ra) < 0.5
Material Thickness (mm) 3
Height (mm) 86
Width (mm) 610
Fixing Centres (mm) 638
Hole Ø M10
Recommended Usable Width (mm) Up to 610
Footprint (mm) 668 x 70
Custom Design <a href="/en-gb/stainless-steel-the-custom-shop/" target="_blank">Dull (2B) 1.4404 - 316L - V4A available on request</a>
For Trunking Size (mm) 75 x 75, 100 x 50, 100 x 100, 150 x 100, 150 x 150, 50 x 50
For Tray Width (mm) 51, 75, 76, 100, 102, 150, 152, 200, 225, 230, 300, 305, 400, 450, 600, 50
Pack Quantity 1
Ideally Suited For Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more
Compatible With Flat Lid Trunking, 15° Apex Lid Trunking, Lighting Trunking, Metric Conduit, NPT Conduit, Medium Duty Straight Edge Cable Tray, Medium Duty Return Flange Cable Tray, Heavy Duty Return Flange Cable Tray, Wire Basket Cable Tray, Brackets, Fasteners
Weight (kg) 1.61
Non-Refundable Yes

Specifications from Electrix International product data.
