Product overview
The TCE8-S316 is a 316 stainless steel flat roof terminal and control enclosure for protecting terminals, controls and compact wiring assemblies. It is suited to demanding electrical installations where a robust stainless enclosure is preferred.
Key features
- 316 stainless steel construction
- Flat roof profile for neat installation
- Suitable for terminal and control equipment
- Durable enclosure for industrial and commercial service areas
- Professional solution for electricians and panel builders
Typical applications
- Terminal and junction boxes
- Control wiring enclosures
- Instrumentation and automation systems
- Plant rooms, workshops and machinery areas
Technical specifications
- Product type: Terminal and control enclosure
- Material: 316 stainless steel
- Roof style: Flat roof
- Range: Electrix stainless steel enclosure system
Product details
Electrix® Flat Roof Terminal & Control Enclosures, in 316L - V4A - 1.4404 stainless steel, are designed to accommodate terminals & control equipment from a variety of manufacturers.
The unrivalled quality & aesthetics of Electrix's enclosures have made them the preferred choice of worldwide processing companies for over 35 years.

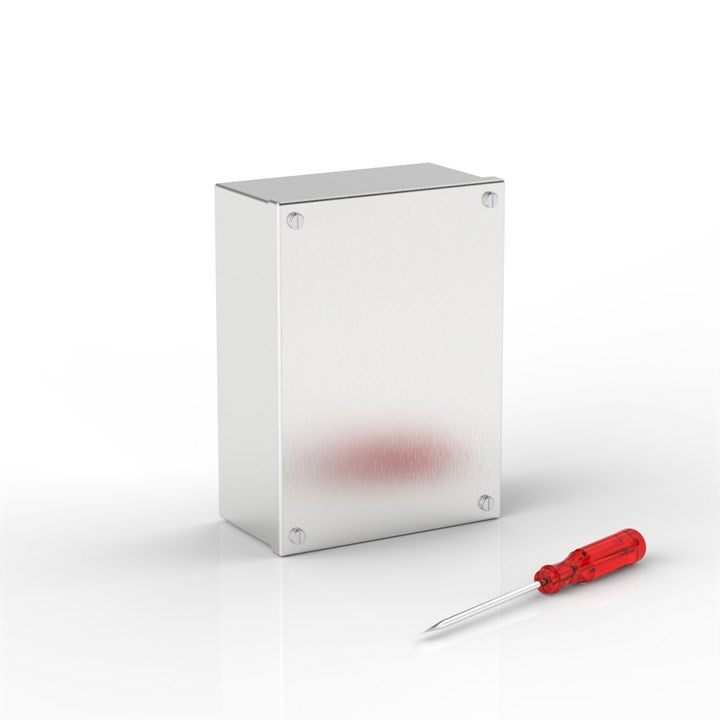

This IP69K / IP66* satin (brushed) finish terminal & control enclosure is 220 x 160 x 85 (H x W x D mm)
Complete with a gear plate, gasketed lid, captive lid fixing screws, earth terminals & earth link.
Type 1 / 12 / 13 / 4 / 4X*.
Manufacturer specifications
| Material Type |
Stainless Steel |
| Material Grade |
316L - V4A - 1.4404 |
| Material Finish |
Satin (Brushed) |
| Surface Finish (µm Ra) |
< 0.5 |
| Material Thickness (mm) |
1.2 |
| Size (H x W x D mm) |
220 x 160 x 85 |
| Height (mm) |
220 |
| Width (mm) |
160 |
| Depth (mm) |
85 |
| Custom Design |
<p>Custom Designs available on request.</p><ul><li>Custom sizes</li><li>Pre-lasered cable entry holes & laser cut apertures</li><li>Extra hygienic lid fixing screws</li><li>Security lid fixing screws</li><li>Flat / stand-off mounting brackets</li></ul><a href="/en-gb/stainless-steel-the-custom-shop/" target="_blank">Click here to visit The Custom Shop.</a> |
| Recessed Cavity |
No |
| Captive Lid Fixings |
Yes |
| Gasket Material |
UL Recognised Neoprene EPDM Closed Cell (One Piece) |
| Lift-off Lid / Cover |
Yes |
| Gear Plate or DIN Rail Fitted? |
Gear Plate Fitted |
| Gear Plate (H x W mm) |
196 x 136 |
| Gear Plate Material |
3 mm white powder coated Zintec |
| Earthing |
Earth terminals & 1 x earth / ground lead* |
| Approvals |
<img alt="cULus Listed" src="/Images/SpecAttributes/spec_logo_cULus_Listed.png" style="padding: 2px 10px 5px 0px;"/><img alt="NSF" src="/Images/SpecAttributes/spec_logo_NSF.png" style="padding: 2px 10px 5px 0px;"/><img alt="IP69K" src="/Images/SpecAttributes/spec_logo_ip69k.png" style="padding: 2px 10px 5px 0px;"/><img alt="Type 4X" src="/Images/SpecAttributes/spec_logo_type_4x.png" style="padding: 2px 10px 5px 0px;"/><img alt="IP66" src="/Images/SpecAttributes/spec_logo_ip66.png" style="padding: 2px 10px 5px 0px;"/><img alt="CE" src="/Images/SpecAttributes/spec_logo_CE_Marking.png" style="padding: 2px 10px 5px 0px;"/><img alt="UKCA" src="/Images/SpecAttributes/spec_logo_UKCA_Marking.png" style="padding: 2px 10px 5px 0px;"/> |
| UL Information |
(Junction & Pull Box) 61ZB, In accordance with UL50/50E, CSA C22.2 No. 94.1 & 2*, File Number: E233528 |
| CE Information |
EN 60670-1, EN 60529, EN 63000 |
| Hygiene Standards |
NSF/ANSI/3A 14159-1 Hygiene Requirements for, the Design of Meat and Poultry Processing Equipment |
| Environmental Rating |
IP66 / IP69K*, Type 1 / 12 / 13 / 4 / 4X* |
| Pack Quantity |
1 |
| Supplied With |
Gear Plate, Lid Gasket, Lid Fixings, Earth Terminals & Earth Link |
| Ideally Suited For |
Offshore, Chemical, Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more |
| Alternative Material Finish / Grade |
Polished 304 - V2A - 1.4301 or Satin (Brushed) 304 - V2A - 1.4301 |
| Weight (kg) |
2.08 |
| Fine Print |
*IP/TYPE rating is only maintained when all apertures are adequately sealed., , It is the installer's responsibility to check that the earth / ground lead is suitable for the intended application. |
Specifications from Electrix International product data.
