Product overview
The TB1 316 Turnbuckle Lid Retainer is a stainless steel accessory used to secure lids on compatible cable tray and trunking systems. The 316-grade stainless construction makes it suitable for demanding environments where higher corrosion resistance is required.
Key features
- Turnbuckle-style lid retaining accessory
- 316 stainless steel hardware for corrosive or exposed conditions
- Helps reduce lid movement in service areas, plant rooms and outdoor installations
- Designed for compatible Electrix stainless cable-management systems
Typical applications
- Coastal and industrial electrical installations
- Food processing and wash-down areas
- Commercial cable tray and trunking runs
Technical specifications
- Product code: TB1 316
- Component type: Turnbuckle lid retainer
- Material: 316 stainless steel hardware
- Application: Additional lid retention for cable-management systems
Product details

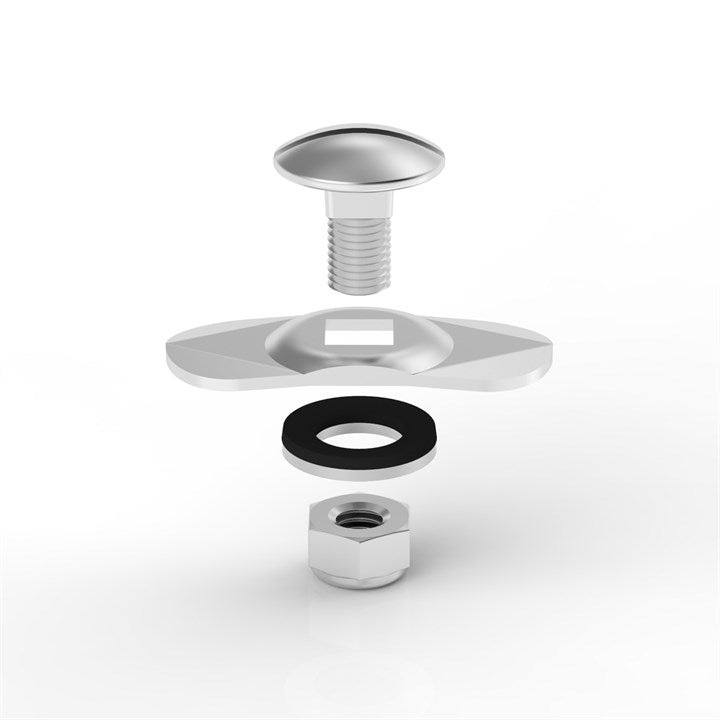

Electrix® Turnbuckle Lid Retainers, in 316L - V4A - 1.4404 stainless steel (turnbuckle cam) & A4 - 316 - V4A (fasteners), are used to provide additional lid fixings when Cable Tray Lids have been cut on site.
This turnbuckle lid retainer is compatible with the following:
- CABLE TRAY SYSTEMS
-
Medium Duty Return Flange Cable Tray Lids
in 316L - V4A - 1.4404 (Width mm):
50, 100, 150, 225, 300, 450 & 600
-
Heavy Duty Return Flange Cable Tray Lids
in 316L - V4A - 1.4404 (Width mm):
100, 150, 225, 300, 450, 600
-
Wire Basket Cable Tray Flat Lids
in 316L - V4A - 1.4404 (Width mm):<100
-
15° Apex Lid Wire Basket Cable Tray Lids
in 316L - V4A - 1.4404 (Width mm):
100
Manufacturer specifications
| Material Type |
Stainless Steel |
| Material Grade |
A4 - 316 - V4A |
| Screw Type |
M6 x 12 mm Slotted Cup Square Bolt |
| Nut Type |
M6 Nyloc Nut |
| For Tray Width (mm) |
100, 150, 200, 225, 300, 400, 450, 600, 50 |
| Pack Quantity |
1 |
| Ideally Suited For |
Offshore, Chemical, Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more |
| Compatible With |
Heavy Duty Return Flange Cable Tray, Medium Duty Return Flange Cable Tray, Wire Basket Cable Tray |
| Alternative Material Finish / Grade |
304 - V2A - 1.4301 |
| Weight (kg) |
0.02 |
Specifications from Electrix International product data.
