The SR15-TCE70-S316 WASHDOWNPRO sloping roof terminal and control enclosure is a 316L stainless steel enclosure for hygienic electrical installations and washdown environments.
Key features
- 316L stainless steel body
- 15 degree sloping roof to help shed water and debris
- IP69K washdown-focused design
- Removable stand-off mounting pillars
- Suitable for terminals, controls and wiring components
Typical applications
- Food processing facilities
- Dairy, brewing and beverage areas
- Washdown plant rooms
- Industrial control installations
Technical specifications
- Range: WASHDOWNPRO SR15-TCE
- Material: 316L stainless steel
- Roof: 15 degree sloping roof
- Rating: IP69K
- Brand: Electrix
Product details
The Ultimate Washdown Range
Electrix's WASHDOWNPRO™ recessed lid enclosure range has been designed specifically for the Food, Dairy, Brewing, Soft Drinks and Pharmaceutical industries, where stringent cleaning guidelines are regularly observed.
Designed to accommodate terminals and control equipment, these IP69K 15º Sloping Roof Terminal & Control Enclosures with Removable Stand-Off Mounting Pillars, in 316L - V4A - 1.4404 stainless steel, have been certified by NSF International, making them an ideal solution for washdown environments where high-pressure and high-temperature cleaning equipment is regularly used.
Worldwide Patented Products
Invented by Electrix®, the WASHDOWNPRO™ range of enclosures feature Electrix's unique IP69K / IP66 Internal Threaded Wall Fixing Points and Removable Stand-Off Mounting Pillars, to facilitate cleaning procedures and allow the enclosures to be installed a fixed distance away from the mounting surface, without compromising the IP rating. These unique features save you time and money by reducing the amount of extra drilling required on site.
WASHDOWNPRO™ Hygienic Benefits:
- Overhanging 15° Sloping Roof
- Angled Lid & Fully Concealed Gasket
- Recessed Lid Protection
- Lid Drainage Channel
- Internal Threaded Wall Fixing Points
- 19 mm Removable Stand-Off Mounting Pillars
- NSF Certified
- Click here for more details

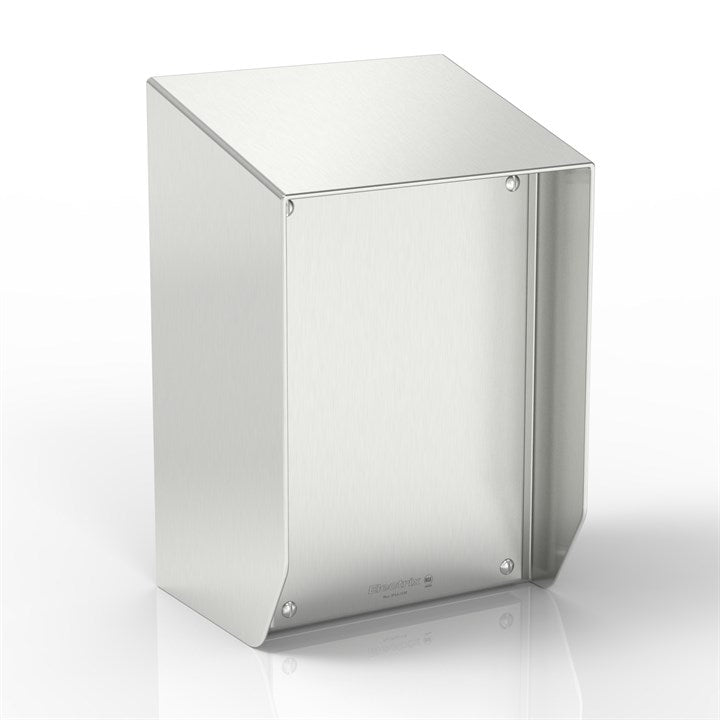

This satin (brushed) finish 15° sloping roof terminal & control enclosure is 250 (295) x 192 x 105 (157) mm.
Complete with easy to clean 19 mm removable stand-off mounting pillars, gear plate, gasketed lid, captive lid fixing screws & earth terminals.
IP69K / IP66*
NEMA Type 1 / 3 / 5 / 12 / 13 / 4 / 4X*
UL Type 1 / 3 / 5 / 12 / 13 / 4 / 4X*
Manufacturer specifications
| Material Type |
Stainless Steel |
| Material Grade |
316L - V4A - 1.4404 |
| Material Finish |
Satin (Brushed) |
| Surface Finish (µm Ra) |
< 0.5 |
| Material Thickness (mm) |
1.5 |
| Size - H1 (H2) x W x D1 (D2) mm |
250 (295) x 192 x 105 (157) |
| Height 1 (mm) |
250 |
| Height 2 (mm) |
295 |
| Width (mm) |
192 |
| Depth 1 (mm) |
105 |
| Depth 2 (mm) |
157 |
| Custom Design |
<p>Custom Designs available on request.</p><ul><li>Polished Finish</li><li>Custom sizes</li><li>Pre-lasered cable entry holes & laser cut apertures</li><li>Extra hygienic lid fixing screws</li><li>Security lid fixing screws</li><li>DIN Rails or Gear Plates</li></ul><a href="/en-gb/stainless-steel-the-custom-shop/" target="_blank">Click here to visit The Custom Shop.</a> |
| 15º Sloping Roof |
Sheds unwanted liquids and prevents items being stored on top of the enclosure., , Alternative angles (e.g. 30° Sloping Roof) are available from <a href="/en-gb/stainless-steel-the-custom-shop/" target="_blank">The Custom Shop</a>. |
| Overhang |
Tilted upwards to limit water flowing down the front of the lid. |
| Lid |
Angled top to encourage liquid run-off during cleaning, and a fully concealed gasket to maintain the IP rating of the enclosure. |
| Recessed Lid Protection |
The lid of the enclosure is recessed and protected by a hood, minimising potential damage to the installed hardware. |
| Drainage Channel |
Essential for easy cleaning and reducing the opportunity for dirt and grime build-up. |
| Internal Threaded Wall Fixing Points |
The <span class="washdown">WASHDOWN<strong>PRO</strong></span><span style="font-size: 90%; color: #007ab6; font-style: normal; font-weight: 100;"><sup>™</sup></span> range of enclosures include our unique IP69K / IP66 Internal Threaded Wall Fixing Points. Invented by <span style="font-family: 'Helvetica Neue', 'Arial Black', 'Arial Bold', sans-serif; color: #007ab6;"><strong><em>Electrix</em></strong></span><span style="padding-left: 2px; color: #007ab6;"><sup>®</sup></span>, the Wall Fixing Points allow the enclosure to be installed without compromising the IP69K / IP66 rating, and reduce the amount of extra drilling required on site, saving you time and money. |
| Removable Stand-Off Mounting Pillars |
Included as standard, our <span class="washdown">WASHDOWN<strong>PRO</strong></span><span style="font-size: 90%; color: #007ab6; font-style: normal; font-weight: 100;"><sup>™</sup></span> Removable Stand-Off Mounting Pillars allow your enclosure to be installed a fixed distance away from a mounting surface without compromising the IP69K rating, facilitating cleaning and washdown procedures. The pillars are threaded to allow them to fit perfectly into pre-formed holes at the rear of the enclosure, whilst the silicone washers assist with the hygiene of the installation. |
| External Wall Fixing Point Cover Kits |
<P>In some circumstances, the installation of a <span class="washdown">WASHDOWN<strong>PRO</strong></span><span style="font-size: 90%; color: #007ab6; font-style: normal; font-weight: 100;"><sup>™</sup></span> enclosure may result in unused wall fixing points remaining visible to users.</p><P><span style="font-family: 'Helvetica Neue', 'Arial Black', 'Arial Bold', sans-serif; color: #007ab6;"><strong><em>Electrix</em></strong></span><span style="padding-left: 2px; color: #007ab6;"><sup>®</sup></span> enclosures maintain their IP69K / IP66 / Type 4X rating and uncompromised hygiene even with these apertures exposed. However, when you need the ultimate in hygiene and aesthetics, we recommend using our <a href="/en-gb/search-results/?searchterm=ws+m10+cover" target="_blank"><span class="washdown">WASHDOWN<strong>PRO</strong></span><span style="font-size: 90%; color: #007ab6; font-style: normal; font-weight: 100;"><sup>™</sup></span> External Wall Fixing Point Cover Kits</a>.</p><P>If you would like to cover all of the wall fixing points, you will require 4 covers for this enclosure.</P> |
| Roof Angle |
15° |
| Captive Lid Fixings |
Yes |
| Lid / Cover Gasket Material |
UL Recognised Neoprene EPDM Closed Cell (One Piece) |
| Lift-off Lid / Cover |
Yes |
| Fixing Method |
IP69K / IP66 Internal Threaded Wall Fixing Points with 19 mm Removable Stand-Off Mounting Pillars - Suitable for use with M6 countersunk fixings when the stand-off mounting pillars are in use, and up to M8 countersunk fixings when the pillars are not used. |
| Stand-Off Mounting Pillar Gasket Material |
Blue Silicone Rubber |
| Internal Wall Fixing Points |
4 |
| NEC Airspace Fixings |
19 mm Removable Stand-Off Mounting Pillar exceeds NEC airspace requirements for Metal Enclosures |
| Gear Plate (H x W mm) |
200 x 143 |
| Gear Plate Material |
3 mm white powder coated Zintec |
| Compact Footprint |
Yes |
| Adhesive labels on Lid / Cover |
No |
| Earthing |
Earth terminals |
| Approvals |
<img alt="cULus Listed" src="/Images/SpecAttributes/spec_logo_cULus_Listed.png" style="padding: 2px 10px 5px 0px;"/><img alt="NSF" src="/Images/SpecAttributes/spec_logo_NSF.png" style="padding: 2px 10px 5px 0px;"/><img alt="IP69K" src="/Images/SpecAttributes/spec_logo_ip69k.png" style="padding: 2px 10px 5px 0px;"/><img alt="Type 4X" src="/Images/SpecAttributes/spec_logo_type_4x.png" style="padding: 2px 10px 5px 0px;"><img alt="IP66" src="/Images/SpecAttributes/spec_logo_ip66.png" style="padding: 2px 10px 5px 0px;"/><img alt="CE" src="/Images/SpecAttributes/spec_logo_CE_Marking.png" style="padding: 2px 10px 5px 0px;"/><img alt="UKCA" src="/Images/SpecAttributes/spec_logo_UKCA_Marking.png" style="padding: 2px 10px 5px 0px;"/> |
| UL Information |
Industrial Control Panel Enclosure, In accordance with UL508A, CSA C22.2 No. 14-13, File Number: E233527 |
| CE Information |
EN 60670-1, EN 60529, EN 63000 |
| Hygiene Standards |
NSF/ANSI/3A 14159-1 Hygiene Requirements for, the Design of Meat and Poultry Processing Equipment |
| Ingress Protection Rating* |
IP69K, IP66 |
| NEMA Rating* |
NEMA Type 1, NEMA Type 3, NEMA Type 5, NEMA Type 12, NEMA Type 13, NEMA Type 4, NEMA Type 4X |
| UL 508A Rating* |
Type 1, Type 3, Type 5, Type 12, Type 13, Type 4, Type 4X |
| CSA C22.2 14-13 Rating* |
Type 1, Type 3, Type 5, Type 12, Type 13, Type 4, Type 4X |
| Pack Quantity |
1 |
| Supplied With |
Easy to Clean 19 mm Removable Stand-Off Mounting Pillars, IP69K / IP66 Internal Threaded Wall Fixing Points, Gear Plate, Lid with Gasket, Captive Lid Fixing Screws & Earth Terminals |
| Ideally Suited For |
Offshore, Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more |
| Weight (kg) |
3.73 |
| Fine Print |
*IP / Type rating is only maintained when all apertures are adequately sealed. This is an open enclosure unless suitably rated auxiliary devices are installed to fill the openings. |
Specifications from Electrix International product data.
