The SL15-XTCE30-S316 WASHDOWNPRO slimline sloping roof terminal and control enclosure is a compact 316L stainless steel enclosure for control and termination points.
Key features
- 316L stainless steel construction
- Slimline 15 degree sloping roof design
- Removable mounting pillars
- Washdown-focused enclosure for hygienic areas
- Suitable for terminals, controls and wiring connections
Typical applications
- Food and beverage facilities
- Washdown plant areas
- Compact terminal enclosures
- Industrial control wiring
Technical specifications
- Range: WASHDOWNPRO SL15-XTCE
- Material: 316L stainless steel
- Roof: 15 degree sloping roof
- Rating: IP66
- Brand: Electrix
Product details
WASHDOWNPRO™ Series
Electrix's WASHDOWNPRO™ slimline lid enclosure range has been designed specifically for the Food, Dairy, Brewing, Soft Drinks and Pharmaceutical industries, where stringent cleaning guidelines are regularly observed.
Designed to accommodate terminals and control equipment, these IP69K 15° Sloping Roof Slimline Lid Terminal & Control Enclosures, in 316L - V4A - 1.4404 stainless steel, have been certified by NSF International, making them an ideal solution for washdown environments where high-pressure and high-temperature cleaning equipment is regularly used.
Worldwide Patented Products
Invented by Electrix®, the WASHDOWNPRO™ range of enclosures feature Electrix's unique IP69K / IP66 Internal Threaded Wall Fixing Points, which allow the enclosures to be installed without compromising the IP rating, and reduce the amount of extra drilling required on site, saving you time and money.
WASHDOWNPRO™ Hygienic Benefits:

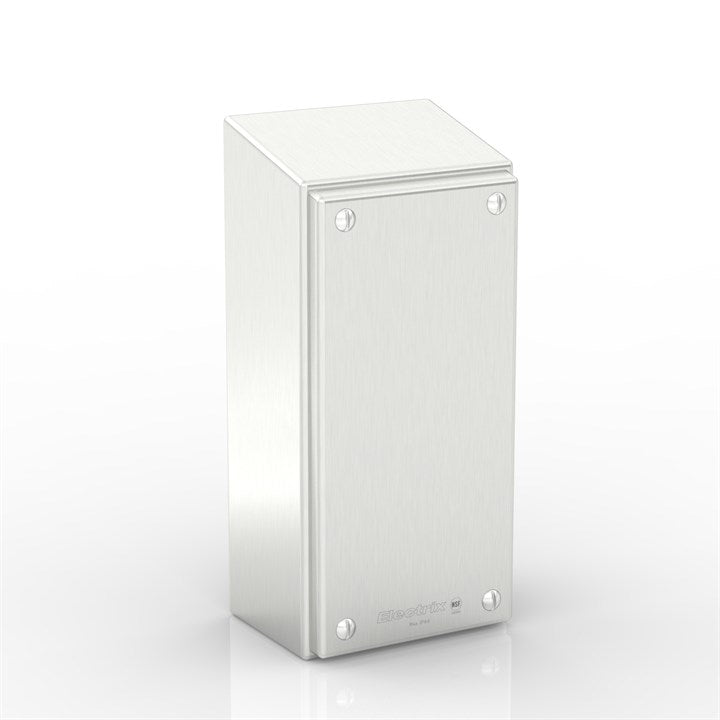

This satin (brushed) finish 15° sloping roof terminal & control enclosure is 203 (221) x 102 x 70 mm.
Complete with 2 x DIN rails, gasketed lid, captive lid fixing screws & earth terminals.
IP69K / IP66*
NEMA Type 1 / 3 / 5 / 12 / 13 / 4 / 4X*
UL Type 1 / 3 / 5 / 12 / 13 / 4 / 4X*
Manufacturer specifications
| Material Type |
Stainless Steel |
| Material Grade |
316L - V4A - 1.4404 |
| Material Finish |
Satin (Brushed) |
| Surface Finish (µm Ra) |
< 0.5 |
| Material Thickness (mm) |
1.5 |
| Size - H1 (H2) x W x D mm |
203 (221) x 102 x 70 |
| Height 1 (mm) |
203 |
| Height 2 (mm) |
221 |
| Width (mm) |
102 |
| Depth (mm) |
70 |
| Custom Design |
<p>Custom Designs available on request.</p><ul><li>Polished Finish</li><li>Custom sizes</li><li>Pre-lasered cable entry holes & laser cut apertures</li><li>Extra hygienic lid fixing screws</li><li>Security lid fixing screws</li><li>Gear Plates</li></ul><a href="/en-gb/stainless-steel-the-custom-shop/" target="_blank">Click here to visit The Custom Shop.</a> |
| 15º Sloping Roof |
Sheds unwanted liquids and prevents items being stored on top of the enclosure., , Alternative angles (e.g. 30° Sloping Roof) are available from <a href="/en-gb/stainless-steel-the-custom-shop/" target="_blank">The Custom Shop</a>. |
| Lid |
Angled top to encourage liquid run-off during cleaning, and a fully concealed gasket to maintain the IP rating of the enclosure. |
| Internal Threaded Wall Fixing Points |
The <span class="washdown">WASHDOWN<strong>PRO</strong></span><span style="font-size: 90%; color: #007ab6; font-style: normal; font-weight: 100;"><sup>™</sup></span> range of enclosures include our unique IP69K / IP66 Internal Threaded Wall Fixing Points. Invented by <span style="font-family: 'Helvetica Neue', 'Arial Black', 'Arial Bold', sans-serif; color: #007ab6;"><strong><em>Electrix</em></strong></span><span style="padding-left: 2px; color: #007ab6;"><sup>®</sup></span>, the Wall Fixing Points allow the enclosure to be installed without compromising the IP69K / IP66 rating, and reduce the amount of extra drilling required on site, saving you time and money. |
| Removable Stand-Off Mounting Pillars |
<p>Available in three different lengths, our optional <span class="washdown">WASHDOWN<strong>PRO</strong></span><span style="font-size: 90%; color: #007ab6; font-style: normal; font-weight: 100;"><sup>™</sup></span> Removable Stand-Off Mounting Pillars allow your enclosure to be installed a fixed distance away from a mounting surface without compromising the IP69K / IP66 rating, facilitating cleaning and washdown procedures. The pillars are threaded to allow them to fit perfectly into pre-formed holes at the rear of the enclosure, whilst the silicone washers assist with the hygiene of the installation.</p><p>This enclosure requires 2 pillars which can be found <a href=https://www.electrixinternational.com/en-gb/search-results/?searchterm=pillar+m10 target="_blank">here</a>.</p> |
| External Wall Fixing Point Cover Kits |
<P>In some circumstances, the installation of a <span class="washdown">WASHDOWN<strong>PRO</strong></span><span style="font-size: 90%; color: #007ab6; font-style: normal; font-weight: 100;"><sup>™</sup></span> enclosure may result in unused wall fixing points remaining visible to users.</p><P><span style="font-family: 'Helvetica Neue', 'Arial Black', 'Arial Bold', sans-serif; color: #007ab6;"><strong><em>Electrix</em></strong></span><span style="padding-left: 2px; color: #007ab6;"><sup>®</sup></span> enclosures maintain their IP69K / IP66 / Type 4X rating and uncompromised hygiene even with these apertures exposed. However, when you need the ultimate in hygiene and aesthetics, we recommend using our <a href="/en-gb/search-results/?searchterm=ws+m10+cover" target="_blank"><span class="washdown">WASHDOWN<strong>PRO</strong></span><span style="font-size: 90%; color: #007ab6; font-style: normal; font-weight: 100;"><sup>™</sup></span> External Wall Fixing Point Cover Kits</a>.</p><P>If you would like to cover all of the wall fixing points, you will require 2 covers for this enclosure.</P> |
| Roof Angle |
15° |
| Captive Lid Fixings |
Yes |
| Lift-off Lid / Cover |
Yes |
| Fixing Method |
IP69K / IP66 Internal Threaded Wall Fixing Points - Suitable for use with M6 countersunk fixings when using the optional stand-off mounting pillars, and up to M8 countersunk fixings when the optional pillars are not used. |
| Internal Wall Fixing Points |
2 |
| DIN Rail |
2 Fitted |
| DIN Rail Length (mm) |
77 |
| DIN Rail Style |
35 mm (W) x 7.5 mm (H) - Top Hat |
| DIN Rail Position |
Horizontal / Central |
| Compact Footprint |
Yes |
| Adhesive labels on Lid / Cover |
No |
| Earthing |
Earth terminals |
| Approvals |
<img alt="cULus Listed" src="/Images/SpecAttributes/spec_logo_cULus_Listed.png" style="padding: 2px 10px 5px 0px;"/><img alt="NSF" src="/Images/SpecAttributes/spec_logo_NSF.png" style="padding: 2px 10px 5px 0px;"/><img alt="IP69K" src="/Images/SpecAttributes/spec_logo_ip69k.png" style="padding: 2px 10px 5px 0px;"/><img alt="Type 4X" src="/Images/SpecAttributes/spec_logo_type_4x.png" style="padding: 2px 10px 5px 0px;"><img alt="IP66" src="/Images/SpecAttributes/spec_logo_ip66.png" style="padding: 2px 10px 5px 0px;"/><img alt="CE" src="/Images/SpecAttributes/spec_logo_CE_Marking.png" style="padding: 2px 10px 5px 0px;"/><img alt="UKCA" src="/Images/SpecAttributes/spec_logo_UKCA_Marking.png" style="padding: 2px 10px 5px 0px;"/> |
| UL Information |
Industrial Control Panel Enclosure, In accordance with UL508A, CSA C22.2 No. 14-13, File Number: E233527 |
| Hygiene Standards |
NSF/ANSI/3A 14159-1 Hygiene Requirements for, the Design of Meat and Poultry Processing Equipment |
| Ingress Protection Rating* |
IP69K, IP66 |
| NEMA Rating* |
NEMA Type 1, NEMA Type 3, NEMA Type 5, NEMA Type 12, NEMA Type 13, NEMA Type 4, NEMA Type 4X |
| UL 508A Rating* |
Type 1, Type 3, Type 5, Type 12, Type 13, Type 4, Type 4X |
| CSA C22.2 14-13 Rating* |
Type 1, Type 3, Type 5, Type 12, Type 13, Type 4, Type 4X |
| Pack Quantity |
1 |
| Supplied With |
IP66 Internal Threaded Wall Fixing Points, 2 x DIN Rails, Lid with Gasket, Captive Lid Fixing Screws & Earth Terminals |
| Ideally Suited For |
Offshore, Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more |
| Weight (kg) |
1.05 |
| Fine Print |
*IP / Type rating is only maintained when all apertures are adequately sealed. This is an open enclosure unless suitably rated auxiliary devices are installed to fill the openings. |
Specifications from Electrix International product data.
