S22 75-75 | Flat Lid Trunking 90° Inside Lid Gusset Bend
S22 75-75 | Flat Lid Trunking 90° Inside Lid Gusset Bend
Electrix

S22 75-75 | Flat Lid Trunking 90° Inside Lid Gusset Bend

In stock
$164.28 AUD inc. GST
Free delivery over $150, $15 flat rate below
Dispatched in 1–2 business days
14-day returns & refunds

Bulk quantities, price-on-application lines or technical questions: we usually reply the same business day.

Trade account holders get tiered pricing applied automatically at checkout. Open a trade account or get in touch.

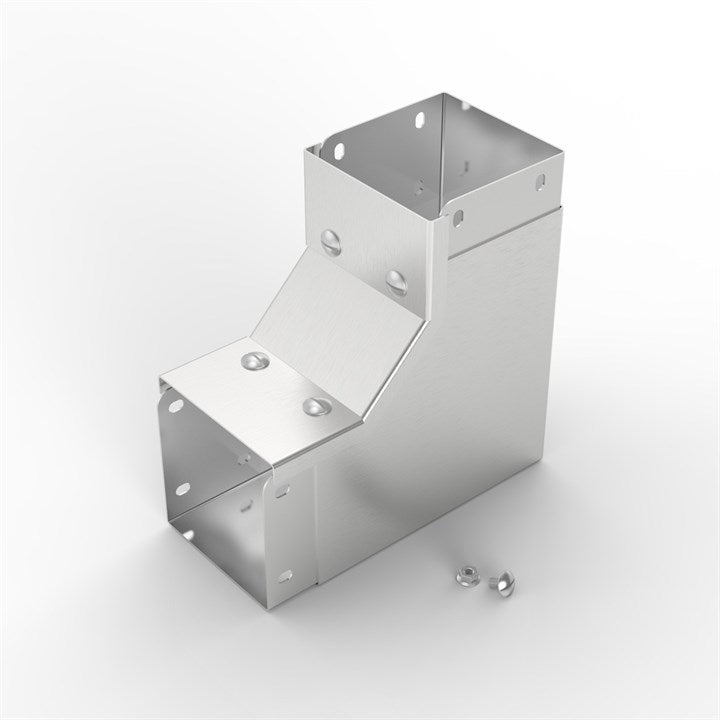

Stainless steel 90° inside lid gusset bend for 75 x 75 mm flat lid trunking. Suitable for professional cable containment where a neat 90° change of direction is required.

Product details

Electrix® Flat Lid Trunking 90° Gusset Bends, in 304 - V2A - 1.4301 stainless steel, are used to change direction during an installation. Electrix's fully welded bends offer unrivalled quality & aesthetics. The sharp 90° external angle of the bend allows for a flush installation ensuring that the ingress of foreign matter is reduced.

Fewer coupling screws are required due to Electrix's factory fitted couplings, making the installation easier to install and easier to clean.

This IP4X / IPXXD satin (brushed) finish 90° inside lid bend is compatible with Electrix's 75 x 75 (W x H mm) Flat Lid Trunking System.

Electrix's unique system features a cover plate over each lid joint which reduces the ingress of foreign matter.

UL Listed.

Manufacturer specifications

Material Type Stainless Steel
Material Grade 304 - V2A - 1.4301
Material Finish Satin (Brushed)
Material Thickness (mm) 1.2
Size (W x H mm) 75 x 75
Height (mm) 75
Width (mm) 75
Custom Design <p>Custom Designs available on request.</p><ul><li>316L - V4A - 1.4404 material</li><li>Custom sizes</li><li>Alternative bend angles (e.g. 15°, 30°)</li><li>Pre-lasered cable entry holes & laser cut apertures</li><li>Multi-compartment</li><li>Lid safety chains</li><li>Lid gasket material</li></ul><a href="/en-gb/stainless-steel-the-custom-shop/" target="_blank">Click here to visit The Custom Shop</a>.
Lid Position Inside Lid Bend
Bend Angle 90°
Unique Cover Plate Fitted over every lid joint, reduces the ingress of foreign matter
Approvals <img alt="UL Listed" src="/Images/SpecAttributes/spec_logo_UL_Listed.png" style="padding: 2px 10px 5px 0px;" /><img alt="IP4X" src="/Images/SpecAttributes/spec_logo_ip4X.png" style="padding: 2px 10px 5px 0px;" /><img alt="CE" src="/Images/SpecAttributes/spec_logo_CE_Marking.png" style="padding: 2px 10px 5px 0px;"/><img alt="UKCA" src="/Images/SpecAttributes/spec_logo_UKCA_Marking.png" style="padding: 2px 10px 5px 0px;"/>
UL Information Surface Metal Raceway Fittings, File Number: E233530 (60UB)
Environmental Rating IP4X / IPXXD*
For Trunking Size (mm) 75 x 75
Pack Quantity 1
Supplied With Fitted Couplings, Lid Fastening Turnbuckles, Cover Plates, Nuts & Screws
Ideally Suited For Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more
Compatible With Flat Lid Trunking
Alternative Material Finish / Grade Polished 304 - V2A - 1.4301
Weight (kg) 1.13
Fine Print *The IP rating is only maintained when all apertures are adequately sealed

Specifications from Electrix International product data.
