PCS-60 700BAR 60T Split-Unit Hydraulic Crimping Tool for 110kV to 220kV

In stock
SKU: PCS-60
$1,956.05 AUD inc. GST
Free delivery over $150, $15 flat rate below
Dispatched in 1–2 business days
14-day returns & refunds

Bulk quantities, price-on-application lines or technical questions: we usually reply the same business day.

Trade account holders get tiered pricing applied automatically at checkout. Open a trade account or get in touch.

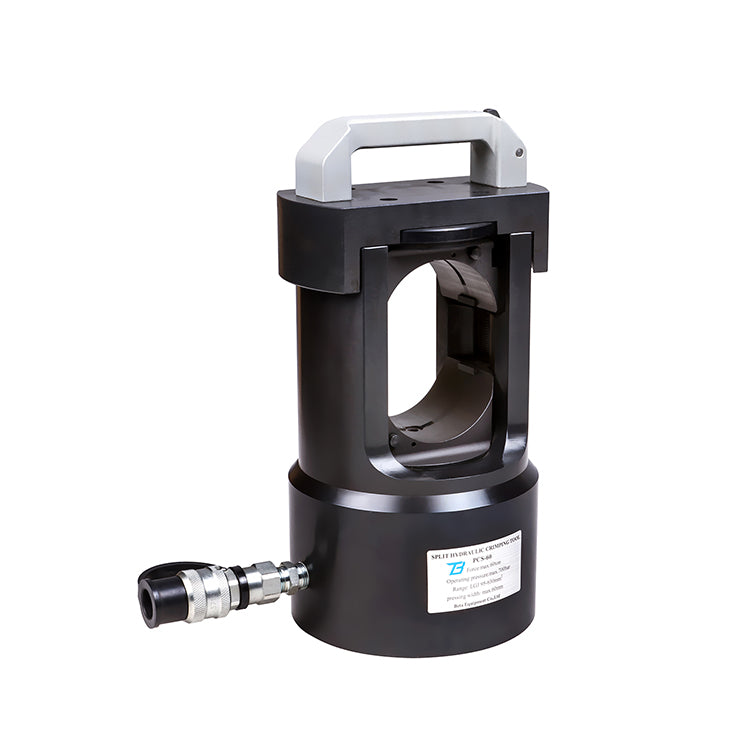

The PCS-60 Hydraulic Crimping Head is a versatile and robust tool designed for high-voltage transmission line applications. Its capability spans from handling overhead steel core aluminum intermediate pipe extensions to crimping tension clamps with ease. The head doubles as an upper die fixed seat, allowing swift rotation and opening for efficient middle and end crimping operations. Featuring a quick coupler for easy disassembly, maintenance and operation are streamlined for enhanced productivity. Powered by a single-acting hydraulic mechanism, this crimping head delivers reliable performance. With a crimping force of 60t, stroke of 38.5mm, and rated pressure of 700bar, it accommodates a crimping capacity of up to 60mm for Cu/Al and 26mm for steel. Weighing 25kg and packaged in a sturdy steel case, the PCS-60 ensures durability and portability. Its dimensions of 27 x 16 x 32cm make it compact and efficient, fitting seamlessly into various work environments.

Features:

  • Suitable for 110kV-220kV transmission line overhead steel core aluminum intermediate pipe extension of stranded wire and steel stranded wire, as well as crimping of tension clamp.
  • The head serves as the upper die fixed seat, allowing for rotation and quick opening for middle and end crimping operations.
  • Quick coupler enables easy disassembly for efficient maintenance and operation.
  • Powered by a single-acting hydraulic mechanism, providing reliable crimping performance.

Specifications:

  • Crimping Force: 60t
  • Stroke: 38.5mm
  • Rated Pressure: 700bar
  • Crimping Capacity:
    • Cu/Al: Max 60mm
    • Steel: Max 26mm
  • Weight: 25kg
  • Packing: Steel Case
  • Dimensions: 27 x 16 x 32cm
  • Packing Size: 32 x 25 x 37cm

Warranty - 18 months after date of purchase
