P20 75-75 | Flat Lid Trunking 90° Outside Lid Bend
P20 75-75 | Flat Lid Trunking 90° Outside Lid Bend
Electrix

P20 75-75 | Flat Lid Trunking 90° Outside Lid Bend

In stock
$164.28 AUD inc. GST
Free delivery over $150, $15 flat rate below
Dispatched in 1–2 business days
14-day returns & refunds

Bulk quantities, price-on-application lines or technical questions: we usually reply the same business day.

Trade account holders get tiered pricing applied automatically at checkout. Open a trade account or get in touch.

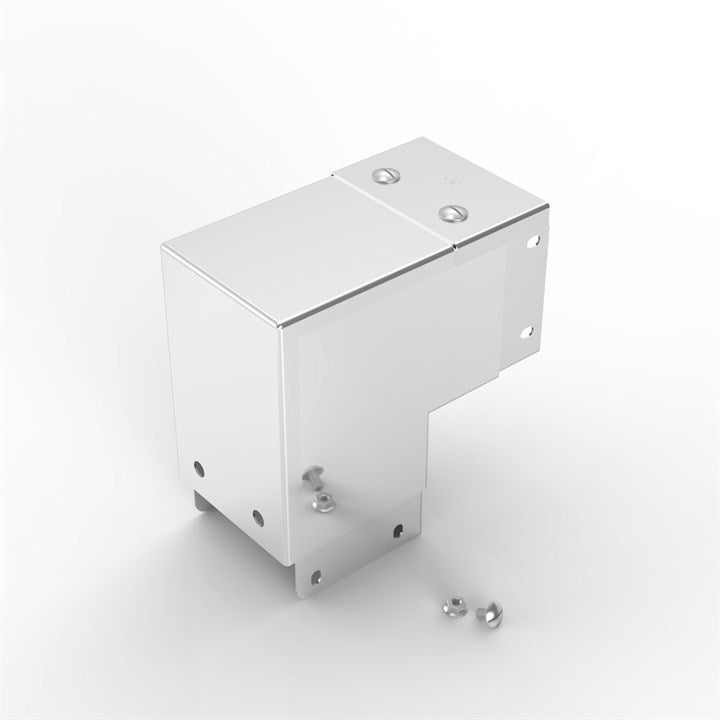

Stainless steel 90° outside lid bend for 75 x 75 mm flat lid trunking. Designed for professional cable routing around corners in exposed commercial and industrial installations.

Product details

Electrix® Flat Lid Trunking 90° Bends, in 304 - V2A - 1.4301 stainless steel, are used to change direction during an installation.

The sharp 90° internal angle of the bend makes it a preferred option for installations where the trunking is mounted directly to e.g. a machine, where a gusset bend would not be suitable.

Fewer coupling screws are required due to Electrix's factory fitted couplings, making the installation easier to install and easier to clean.

This IP4X / IPXXD polished finish 90° outside lid bend is compatible with Electrix's 75 x 75 (W x H mm) Flat Lid Trunking System.

Electrix's unique system features a cover plate over each lid joint which reduces the ingress of foreign matter.

UL Listed.

Manufacturer specifications

Material Type Stainless Steel
Material Grade 304 - V2A - 1.4301
Material Finish Polished
Material Thickness (mm) 1.2
Size (W x H mm) 75 x 75
Height (mm) 75
Width (mm) 75
Custom Design <p>Custom Designs available on request.</p><ul><li>316L - V4A - 1.4404 material</li><li>Custom sizes</li><li>Alternative bend angles (e.g. 15°, 30°)</li><li>Pre-lasered cable entry holes & laser cut apertures</li><li>Multi-compartment</li><li>Lid safety chains</li><li>Lid gasket material</li></ul><a href="/en-gb/stainless-steel-the-custom-shop/" target="_blank">Click here to visit The Custom Shop</a>.
Lid Position Outside Lid Bend
Bend Angle 90°
Unique Cover Plate One fitted per lid, reduces the ingress of foreign matter
Approvals <img alt="UL Listed" src="/Images/SpecAttributes/spec_logo_UL_Listed.png" style="padding: 2px 10px 5px 0px;" /><img alt="IP4X" src="/Images/SpecAttributes/spec_logo_ip4X.png" style="padding: 2px 10px 5px 0px;" /><img alt="CE" src="/Images/SpecAttributes/spec_logo_CE_Marking.png" style="padding: 2px 10px 5px 0px;"/><img alt="UKCA" src="/Images/SpecAttributes/spec_logo_UKCA_Marking.png" style="padding: 2px 10px 5px 0px;"/>
UL Information Surface Metal Raceway Fittings, File Number: E233530 (60UB)
Environmental Rating IP4X / IPXXD*
For Trunking Size (mm) 75 x 75
Pack Quantity 1
Supplied With Fitted Couplings, Lid Fastening Turnbuckles, Cover Plate, Nuts & Screws
Ideally Suited For Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more
Compatible With Flat Lid Trunking
Alternative Material Finish / Grade Satin (Brushed) 304 - V2A - 1.4301
Weight (kg) 0.98
Fine Print *The IP rating is only maintained when all apertures are adequately sealed

Specifications from Electrix International product data.
