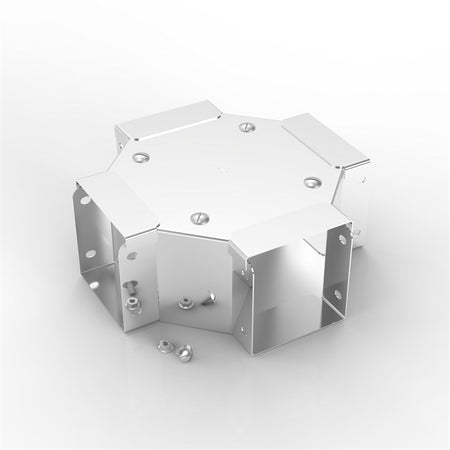

The P16 50-50 Flat Lid Trunking 90° Front Lid Gusset Intersection is a stainless steel trunking junction fitting for 50 x 50 mm cable containment systems. It is used to create neat 90° intersections while keeping cables enclosed and protected.
Key features
- 90° front lid gusset intersection for flat lid trunking
- Compatible with 50 x 50 mm trunking systems
- Stainless steel construction for corrosion resistance
- Supports clean cable routing at multi-way junctions
- Suitable for industrial and commercial electrical installations
Typical applications
- Power and control cable containment
- Plant rooms, workshops and service areas
- Industrial automation cable routes
- Stainless trunking systems in demanding environments
Technical specifications
- Type: Flat lid trunking 90° front lid gusset intersection
- Size: 50 x 50 mm
- Material: Stainless steel
- Brand: Electrix
Product details
Electrix® Flat Lid Trunking 90° Gusset Intersections, in 304 - V2A - 1.4301 stainless steel, are used to change direction during an installation and to provide additional outlets for trunking runs. Electrix's intersections offer unrivalled quality & aesthetics.
Fewer coupling screws are required due to Electrix's factory fitted couplings, making the installation easier to install and easier to clean.
This IP4X / IPXXD polished finish 90° front lid intersection is compatible with both Electrix's 50 x 50 (W x H mm) Flat Lid Trunking System & Lighting Trunking System.
Electrix's unique system features a cover plate over each lid joint which reduces the ingress of foreign matter.
UL Listed.
Manufacturer specifications
| Material Type |
Stainless Steel |
| Material Grade |
304 - V2A - 1.4301 |
| Material Finish |
Polished |
| Material Thickness (mm) |
1.2 |
| Size (W x H mm) |
50 x 50 |
| Height (mm) |
50 |
| Width (mm) |
50 |
| Custom Design |
<p>Custom Designs available on request.</p><ul><li>316L - V4A - 1.4404 material</li><li>Custom sizes</li><li>Pre-lasered cable entry holes & laser cut apertures</li><li>Multi-compartment</li><li>Lid safety chains</li><li>Lid gasket material</li></ul><a href="/en-gb/stainless-steel-the-custom-shop/" target="_blank">Click here to visit The Custom Shop</a>. |
| Lid Position |
Front Lid Intersection |
| Bend Angle |
90° |
| Unique Cover Plate |
Fitted over every lid joint, reduces the ingress of foreign matter |
| Approvals |
<img alt="UL Listed" src="/Images/SpecAttributes/spec_logo_UL_Listed.png" style="padding: 2px 10px 5px 0px;" /><img alt="IP4X" src="/Images/SpecAttributes/spec_logo_ip4X.png" style="padding: 2px 10px 5px 0px;" /><img alt="CE" src="/Images/SpecAttributes/spec_logo_CE_Marking.png" style="padding: 2px 10px 5px 0px;"/><img alt="UKCA" src="/Images/SpecAttributes/spec_logo_UKCA_Marking.png" style="padding: 2px 10px 5px 0px;"/> |
| UL Information |
Surface Metal Raceway Fittings, File Number: E233530 (60UB) |
| Environmental Rating |
IP4X / IPXXD* |
| For Trunking Size (mm) |
50 x 50 |
| Pack Quantity |
1 |
| Supplied With |
Fitted Couplings, Lid Fastening Turnbuckles, Cover Plates, Nuts & Screws |
| Ideally Suited For |
Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more |
| Compatible With |
Flat Lid Trunking, Lighting Trunking |
| Alternative Material Finish / Grade |
Satin (Brushed) 304 - V2A - 1.4301 |
| Weight (kg) |
0.91 |
| Fine Print |
*The IP rating is only maintained when all apertures are adequately sealed |
Specifications from Electrix International product data.
