NEMA 3 Reverse Rail Cable Ladder
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Product overview
The NEMA 3 Reverse Rail Cable Ladder is a heavy-duty cable support system for commercial and industrial projects requiring a reverse rail configuration. It provides strong, accessible support for major cable routes while helping maintain organised cable runs.
Key features
- NEMA 3 reverse rail cable ladder profile
- Designed for heavy-duty cable containment applications
- Open ladder construction supports cable ventilation and inspection access
- Available in hot dip galvanised and stainless steel finishes, subject to availability
Typical applications
- Industrial electrical installations
- Switchrooms, risers and plant areas
- Infrastructure and commercial cable routes
- Projects requiring reverse rail ladder configuration

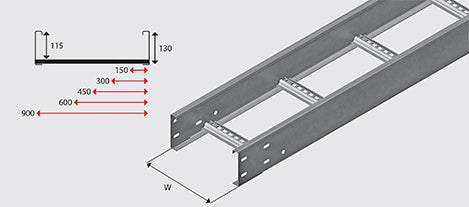

Technical specifications
- Product type: NEMA 3 reverse rail cable ladder
- Cable laying depth: 115 mm
- Side rail height: 130 mm
- Cable laying widths: 150–900 mm range, subject to selected size
- Finish options: Hot dip galvanised or stainless steel, subject to availability
Please contact DZ Electrical Products for project pricing, available sizes, finishes and lead times.
