NEMA 3 Cable Ladder
Regular price
$0.00 AUD
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Product overview
The NEMA 3 Cable Ladder is a heavy-duty steel cable support system for commercial and industrial electrical installations. It is designed for larger cable runs where strength, accessibility and long-term cable management are required.
Key features
- NEMA 3 cable ladder profile for robust cable support
- Suitable for high-volume power, control and communications cabling
- Open ladder design supports ventilation and easier cable access
- Available in hot dip galvanised and stainless steel finishes, subject to availability
Typical applications
- Industrial plants and processing facilities
- Switchrooms and electrical service corridors
- Commercial buildings and infrastructure projects
- Main cable routes requiring strong ladder support

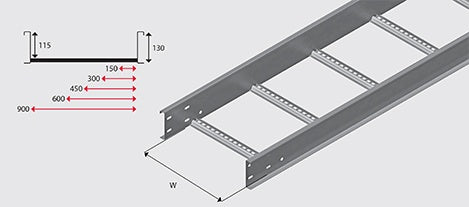

Technical specifications
- Product type: NEMA 3 cable ladder
- Cable laying depth: 115 mm
- Side rail height: 130 mm
- Cable laying widths: 150–900 mm range, subject to selected size
- Finish options: Hot dip galvanised or stainless steel, subject to availability
Please contact DZ Electrical Products for project pricing, widths, finishes and lead times.
