NEMA 2 Reverse Rail Cable Ladder
Regular price
$0.00 AUD
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Product overview
The EzyStrut NEMA 2 Reverse Rail Cable Ladder is a steel ladder system for heavy-duty cable support where a reverse rail configuration is required. It is suited to commercial and industrial cable routes needing strong support, access and ventilation.
Key features
- NEMA 2 reverse rail cable ladder configuration
- Open ladder design for cable installation and maintenance access
- Suitable for higher-capacity cable support routes
- Available in hot dip galvanised and stainless steel finishes, subject to selection and availability
- Compatible with matching NEMA 2 fittings and accessories
Typical applications
- Industrial cable management systems
- Commercial service risers and switchrooms
- Power and control cable routes
- Heavy-duty cable support installations

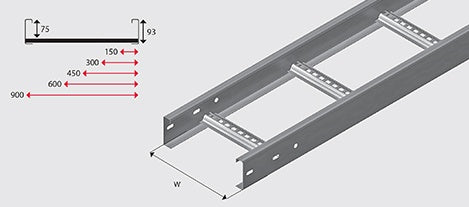

Technical specifications
- Product type: reverse rail steel cable ladder
- System: NEMA 2
- Cable laying depth: 75 mm
- Side rail: 93 mm
- Cable laying widths: 150–900 mm
- Finish options: hot dip galvanised or stainless steel, subject to availability
