Home » Contactor 415V AC MX9C136340

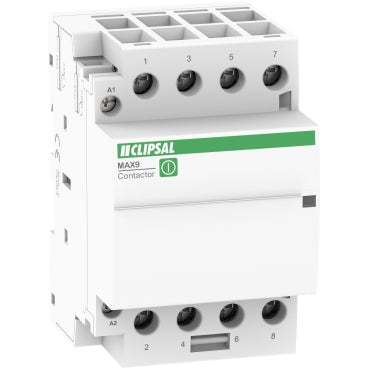

Contactor***EMAIL/TEXT FOR PRICING***
Contactor***EMAIL/TEXT FOR PRICING***
Clipsal by Schneider Electric

Contactor 415V AC MX9C136340

SKU: MX9C136340
Price on request
Free delivery over $150, $15 flat rate below
Dispatched in 1–2 business days
14-day returns & refunds

Bulk quantities, price-on-application lines or technical questions: we usually reply the same business day.

Trade account holders get tiered pricing applied automatically at checkout. Open a trade account or get in touch.

Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.

Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.

View Data Sheet

Specifications

Design

Range

MAX9

Product or component type

contactor

Device application

control circuit

Product compatibility

no auxiliary

Market segment

residential

Sustainable offer status

Green Premium product

Warranty

7-year

Physical

[ie] rated operational current

63 A AC-7A

Control type

remote control

[ue] rated operational voltage

415 V AC 50 Hz

Mounting mode

clip-on

Mounting support

35 mm symmetrical DIN rail

Height

81 mm

Width

54 mm

Depth

63 mm

Net weight

380 g

Mechanical durability

1000000 cycles

Electrical durability

100000 cycles 240 V 25 A AC 50 Hz

Connections - terminals

power: tunnel type terminal1 cable(s) 6-16 mm² flexible|power: tunnel type terminal2 cable(s) 6-10 mm² flexible|power: tunnel type terminal1 cable(s) 6-25 mm² rigid|power: tunnel type terminal2 cable(s) 6-10 mm² rigid|control: tunnel type terminal1 cable(s) 0.5-4 mm² flexible|control: tunnel type terminal2 cable(s) 0.5-2.5 mm² flexible|control: tunnel type terminal1 cable(s) 0.5-6 mm² rigid|control: tunnel type terminal2 cable(s) 0.5-2.5 mm² rigid

Wire stripping length

14 mm

Ip degree of protection

IP20 (modular enclosure) conforming to IEC 60529

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-5...70 °C

Ambient air temperature for storage

-40...70 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP110308EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Poles description

4P

Pole contact composition

4 NO

Network type

AC

Utilisation category

AC-7A

[uc] control circuit voltage

240 V AC 50 Hz

Network frequency

50 Hz

Maximum power

2.1 W at 415 V AC 50 Hz

[ui] rated insulation voltage

500 V AC 50 Hz conforming to EN 61095

[uimp] rated impulse withstand voltage

2.5 kV

Switching frequency

100 switching operations/day

Hold-in power consumption in va

6.5...6.5 VA

Inrush power in va

53 VA

Comb busbar and distribution block compatibility

NO

9 mm pitches

6

Tightening torque

power: 3.5...3.5 N.m|control: 0.8...0.8 N.m

Temperature derating table

40 °C ( 63 A ) |50 °C ( 59.8 A ) |60 °C ( 50 A )

Quality labels

RCM

Noise level

30 dB

Heat dissipation

28 W at 50 Hz

Pollution degree

2

Overvoltage category

III

Tropicalisation

severity B

Operating altitude

2000 m

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.6 cm

Package 1 width

11.1 cm

Package 1 length

12.1 cm

Package 1 weight

410.5 g

Unit type of package 2

S03

Number of units in package 2

28

Package 2 height

30 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

11.994 kg
Show less
