MRF FT90 75 | Medium Duty Return Flange Cable Tray 90° Flat Tee
MRF FT90 75 | Medium Duty Return Flange Cable Tray 90° Flat Tee
Electrix

MRF FT90 75 | Medium Duty Return Flange Cable Tray 90° Flat Tee

In stock
$200.58 AUD inc. GST
Free delivery over $150, $15 flat rate below
Dispatched in 1–2 business days
14-day returns & refunds

Bulk quantities, price-on-application lines or technical questions: we usually reply the same business day.

Trade account holders get tiered pricing applied automatically at checkout. Open a trade account or get in touch.

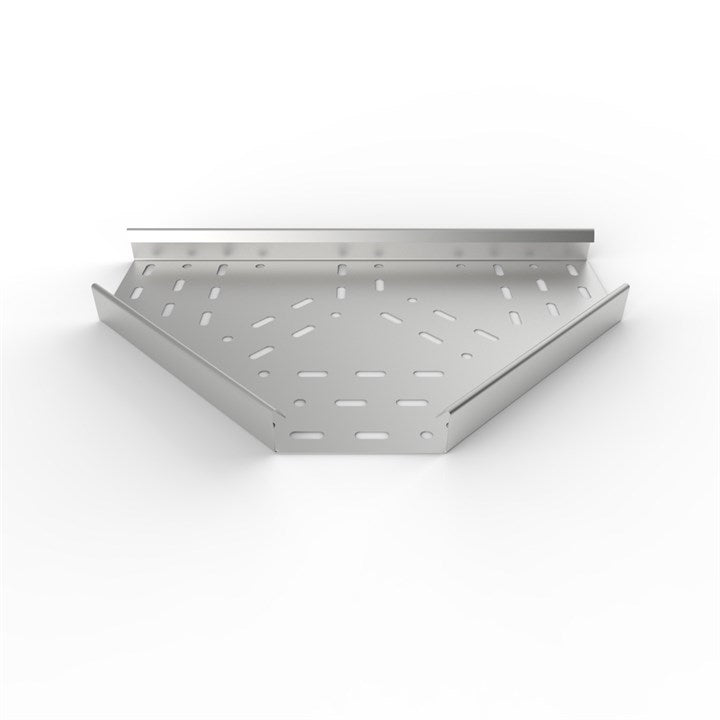

Electrix® Medium Duty Return Flange Cable Tray Flat Tees, in 316L - V4A - 1.4404 stainless steel, are used to change direction during an installation and to provide an additional outlet for cable tray runs.

This 90° flat tee is compatible with our 75 mm wide Medium Duty Return Flange Cable Tray System.

Couplings are sold separately - Electrix recommends 1 x pair of straight couplings (Part No. MRF CO) and 2 x pairs of cranked couplings (Part No. MRF CC) for each flat tee.

Optional lids are available for this range.

Material Information
  • Material Type: Stainless Steel
  • Material Grade: 316L - V4A - 1.4404
  • Material Finish: Dull (2B)
  • Surface Finish (µm Ra): < 0.5
  • Material Thickness (mm): 0.9
Dimensions Cable Tray Information
  • Standard: Medium Duty
  • Wall Type: Return Flange
  • Wall Height (mm): 30
  • Bend Angle: 90°
  • Bend Direction: Flat
For Use With
  • For Tray Width (mm): 75
General Information
  • Ideally Suited For: Offshore, Chemical, Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more
  • Compatible With: Medium Duty Return Flange Cable Tray
  • Pack Quantity: 1
  • Weight (kg): 0.58
  • Commodity Code: 73269098
  • Disclaimer: Images are representative of range and for illustration purposes only. Please check the full specifications for more information. All dimensions are subject to tolerances - please refer to the technical drawings.
Download product specifications

Product details

Electrix® Medium Duty Return Flange Cable Tray Lids, in 316L - V4A - 1.4404 stainless steel, are used to reduce the possibility of foreign matter entering the installation and to provide additional protection to the installed cables.

This lid is compatible with Electrix's 75 mm wide Medium Duty Return Flange Cable Tray 90° Flat Tee (Part No. MRF FT90 75).

Each lid is supplied complete with couplings, lid joint cover plates (which reduce the ingress of foreign matter) and turnbuckle lid retainers.

Manufacturer specifications

Material Type Stainless Steel
Material Grade 316L - V4A - 1.4404
Material Finish Dull (2B)
Surface Finish (µm Ra) < 0.5
Material Thickness (mm) 1.2
Width (mm) 75
Custom Design <p>Custom Designs available on request.</p><ul><li>Custom sizes</li><li>Polished or Satin (Brushed) material</li></ul><a href="/en-gb/stainless-steel-the-custom-shop/" target="_blank">Click here to visit The Custom Shop.</a>
Standard Medium Duty
Wall Type Return Flange
Unique Cover Plate Fitted over every lid joint, reduces the ingress of foreign matter
Bend Angle 90°
Bend Direction Flat
For Tray Width (mm) 75
Pack Quantity 1
Supplied With Couplings, Lid Fastening Turnbuckles & Cover Plates
Ideally Suited For Offshore, Chemical, Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more
Compatible With Medium Duty Return Flange Cable Tray
Weight (kg) 0.55

Specifications from Electrix International product data.
