Mechanical Booster Relay 3-Wire 240V 10A
Relay product.
Key Features
- 3-wire style
- 240V rating
- 10A rating
- CABAC product
Product details

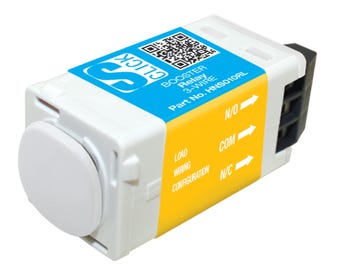

The S-Click HNS010RL Booster Relay Mech boosts the current capacity of a circuit controlled by an external switching device to 10A. This booster relay is compatible with S-Click 3-wire products, such as HNS440TM, HNS450TM and HNS460SW. Suggested uses include large pool pumps, electrical motors and timed power points.
The HNS010RL can be mounted in a dual wall plate alongside the external switching device. The unit is compatible with a wide range of popular wall plates, with covers to fit suitable Clipsal and HPM wall plates included. Alternatively, the unit has a convenient cable tie mounting feature that allows for in-wall installation.
Operating Conditions
Operating Voltage: 230 - 240V a.c. 50Hz
Operating Temperature: 0 to +50 degrees Celsius
Compliance Standard: CISPR15, AS/NZS 3100
Maximum Current Capacity 10A, 6AX
The HNS010RL is to be installed as part of a fixed wire electrical installation. By law, such installations must be made by an electrical contractor or similarly qualified person. For further information and important safety warnings, refer to the product datasheet (see Additional Information).
Manufacturer specifications
| Max Current (A) |
10 |
| Max Time Out (hrs) |
Timer Dependent |
| Max Load (VA) |
1200 |
| Timer Range |
Timer Dependent |
| Dimmer Compatible |
Yes |
| Fans Compatible |
Yes |
| Number of Wires |
3 |
Product details and specifications from CABAC product data.
