Description

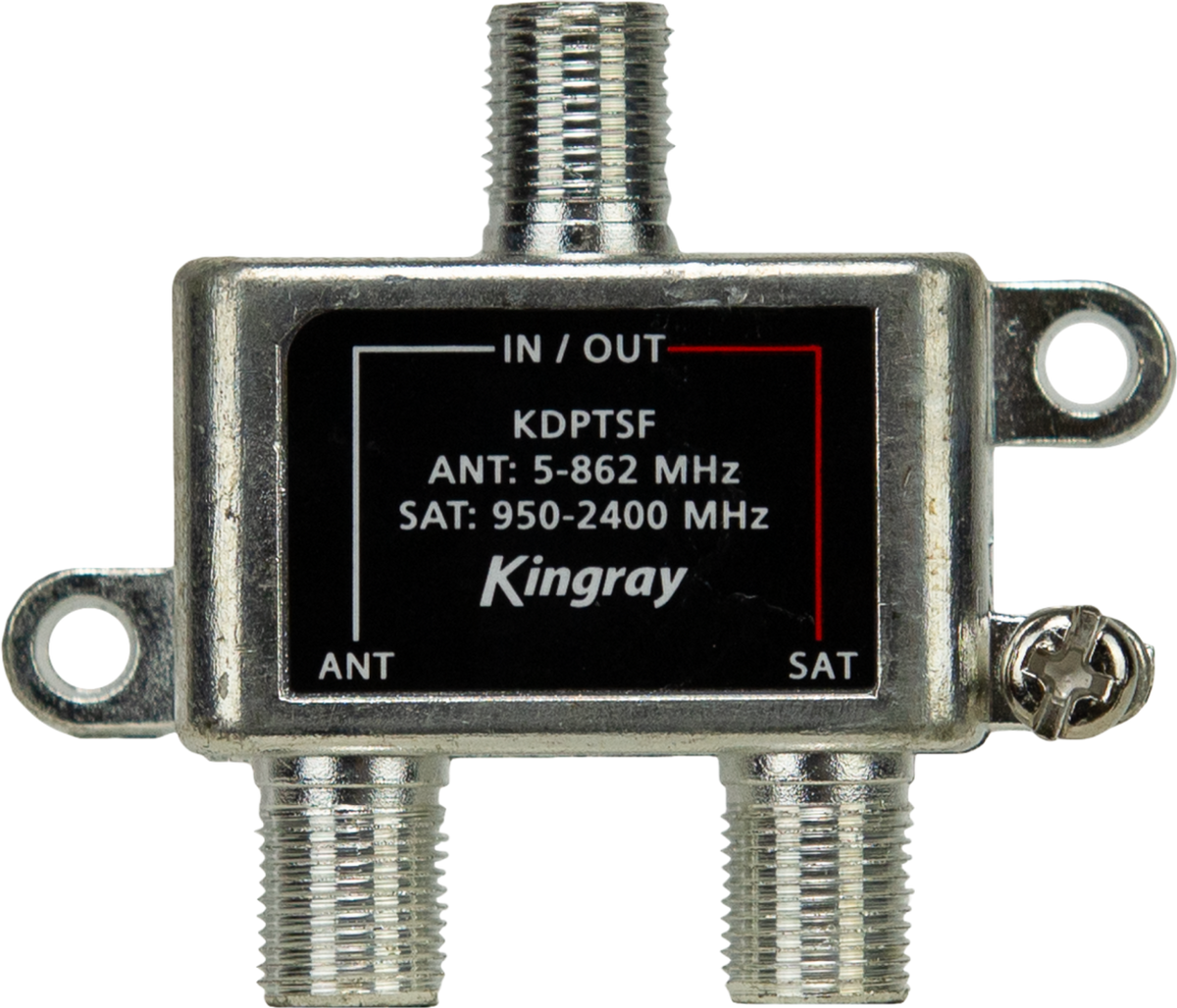

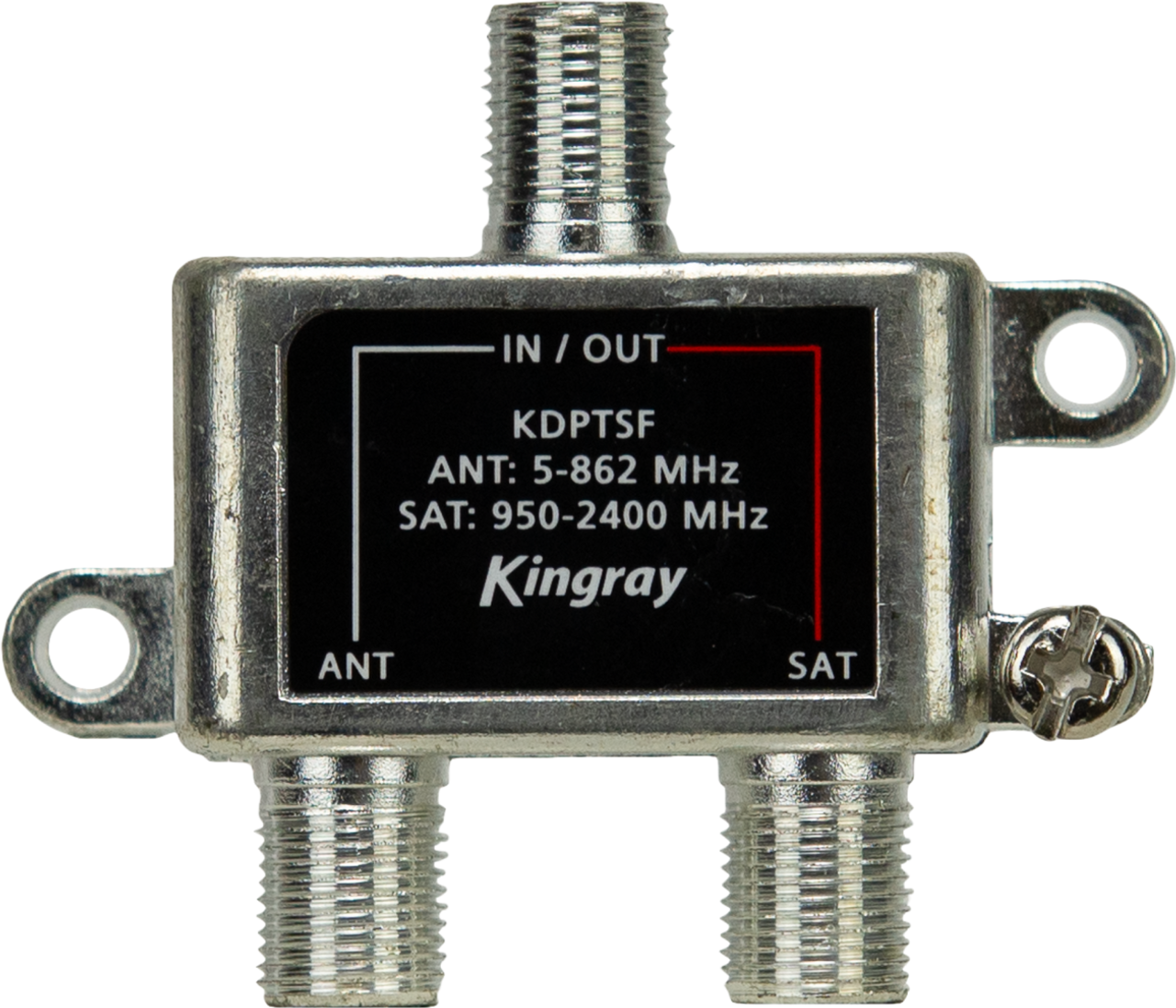

The Kingray KDPTSF displexer is designed for peak performance across the terrestrial & satellite bands up to 2400 MHz. This A class diplexer is compact in design with excellent screening characteristics & is Foxtel Approved.
Features:
- Frequency Range 5-862 MHz & 950-2400 MHz
- 1 Terrestrial Input
- 1 Satellite Input
- Power Pass Satellite Port
- Connectors: F-Type
- Foxtel Approved IPL # F30953
Inclusions:
- KDPTSF Diplexer
- Mounting Screws

Product details
Combine your TV worlds without the clutter—the Kingray KDPTSF Diplexer is your easy all-in-one connector that merges free-to-air (FTA) terrestrial signals (5-862 MHz) with satellite feeds (950-2400 MHz) into a single coaxial cable, saving space and simplifying wiring for crystal-clear viewing across both. Like a smart traffic merger for your antenna setup, it takes one terrestrial input and one satellite input, blending them seamlessly with a power pass on the satellite port to keep amps or LNBs humming without extra cables. Perfect for homes, caravans, or apartments wanting Foxtel pay TV alongside local channels, its A-class screening blocks interference (no more fuzzy HD/4K from cell towers), and compact F-Type design installs in seconds—mount with included screws and watch your entertainment flow smoothly. Foxtel-approved (IPL #F30953) for Australian reliability, this diplexer delivers peak performance up to 2400 MHz without signal loss or hassle. Ditch the cable mess, tune in sharper—Kingray makes dual-TV magic feel effortless!
Key Features:
-
Dual-Band Signal Blend: Handles 5-862 MHz for FTA terrestrial TV and 950-2400 MHz for satellite—like a perfect mix for local news and premium channels, supporting HD/4K without crossover noise.
-
Simple Two-in-One Inputs: Dedicated terrestrial and satellite ports combine into one output—cuts cable runs in half for cleaner installs behind TVs or in walls.
-
Satellite Power Pass: Built-in DC pass on the satellite port (up to 2A)—powers your LNB or amp remotely, no separate lines needed for hassle-free satellite dishes.
-
Top-Tier Screening: A-class interference rejection keeps signals pure—like a quiet lane for your TV waves, blocking mobile or electrical buzz for steady, distortion-free viewing.
-
F-Type Connector Ease: Standard F-Male/F-Female ports twist on securely—weather-tough for indoor/outdoor use, Foxtel IPL #F30953 approved for Aussie pay TV setups.
-
Compact Mount-Ready: Small housing with included screws fits anywhere—ideal for caravans, home theaters, or MATV systems without bulky gear.
-
Proven Performance: Up to 2400 MHz handling ensures future-proof clarity for digital FTA, Foxtel, or satellite, with zero signal degradation.
