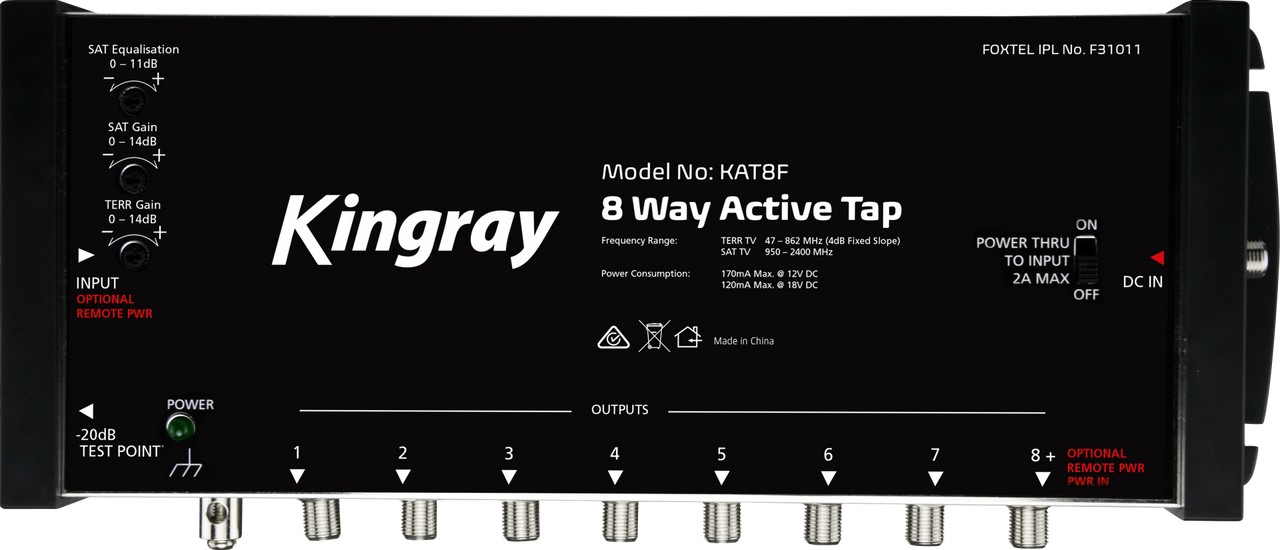

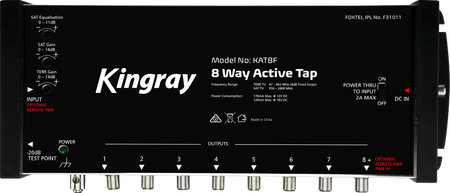

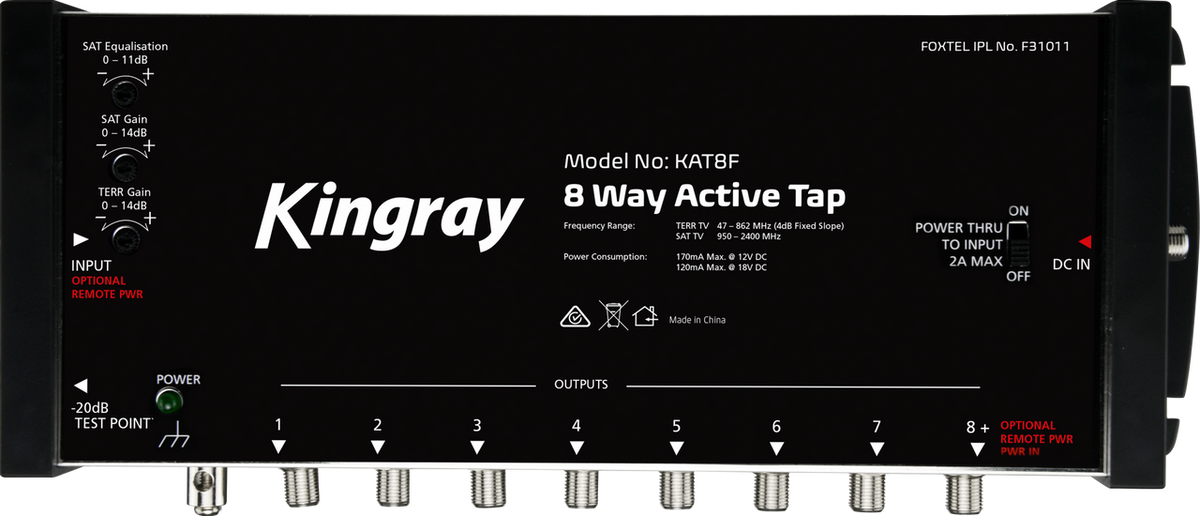

Kingray KAT8F 8 Port Active Tap, Single Input 47-2400MHz Frequency Range

In stock
SKU: 11MKAT8F
Regular price $268.13 AUD inc. GST
Free delivery over $150, $15 flat rate below
Dispatched in 1–2 business days
14-day returns & refunds

Bulk quantities, price-on-application lines or technical questions: we usually reply the same business day.

Trade account holders get tiered pricing applied automatically at checkout. Open a trade account or get in touch.

Description

The Kingray KAT8F Active Tap is specifically designed for the distribution of terrestrial and satellite signals in a Multistacker installation. It features high output with adjustable gain and equalisation control.

Features:

  • Frequency Range of 47-862 MHz & 950-2400 MHz
  • 1 Input, 8 Outputs
  • 10-14dB Maximum Gain @ 47-862 MHz
  • 14dB Maximum Gain @ 950-2400 MHz
  • 14dB Gain Control for both FTA & Satellite
  • Fixed 4dB Equalisation for FTA
  • 11dB Equalisation Control for Satellite
  • 20dB Test Point
  • Maximum Output Level of 96dB for FTA (60dBuV IMA3 @ EN60728-5)
  • Maximum Output Level of 97dB for Satellite (35dBuV IMA3 @ EN60728-3)
  • Return Loss >12dB
  • Connectors: F-Type
  • Power Consumption: 170mA Max. @ 12V DC
  • Power Consumption: 120mA Max. @ 18V DC
  • Operating Voltage: 12V DC 2A
  • Maximum of 2A power can be sent to the RF input via the power through switch
  • Can be remotely powered with the use of a power injector (PIK2400) & suitable power supply
  • Suitable Power Supply: PSK18M, PSK124F or PSK183F
  • Foxtel Approved IPL # F31011

Inclusions:

  • 8 Way Active Tap
  • Installation Manual
  • Mounting Screws

Product details

Boost and branch your TV signals like a pro without the hassle—meet the Kingray KAT8F 8-Way Active Tap, your all-in-one solution for sharing crystal-clear free-to-air (FTA) and satellite TV across up to eight rooms or devices. Designed for easy Multistacker setups (think stacking signals like building blocks for a whole-home network), this active tap amplifies and fine-tunes terrestrial (47-862 MHz) and satellite (950-2400 MHz) feeds with adjustable gain and equalization controls, so every channel—from local news to premium Foxtel—arrives sharp and strong, without fuzzy pictures or weak spots. Whether you're powering a family entertainment system, apartment block, or hotel TV grid, its high-output design (up to 96dB for FTA, 97dB for satellite) handles heavy loads like a champ, while the 20dB test point lets you check signals on the fly.

Foxtel-approved (#F31011) for peace-of-mind compliance, it connects via reliable F-Type ports and powers up locally (12V/18V DC) or remotely with a simple injector and supply (like PSK18M)—no more tangled power cords or signal drop-offs. Compact and wall-mount ready (screws included), it's a breeze for DIYers or pros: just plug in, tweak the dials for perfect balance, and enjoy lag-free HD/4K viewing everywhere. With low return loss (>12dB) to cut noise and a max 2A power pass-through, it's built tough for everyday reliability. Simple setup, big results—Kingray makes whole-home TV feel effortless and epic!

Key Features:

  • Dual-Band Signal Magic: Covers 47-862 MHz for everyday FTA TV and 950-2400 MHz for satellite—boosts weak signals up to 10-14dB (FTA) or 14dB (satellite) so far-away rooms get the same great picture.
  • 8-Way Smart Splitting: One input feeds eight outputs with adjustable gain (14dB control for both bands) and fixed/equalization tweaks (4dB FTA, 11dB satellite)—like a volume knob for your whole network, preventing overloads.
  • Power Your Way: Runs on 12V/2A or 18V DC locally, or remotely via injector (PIK2400) and supplies like PSK18M—plus passes up to 2A to your antenna, keeping everything humming without extra outlets.
  • Pro-Level Outputs: Delivers 96dB max for FTA (60dBuV IMA3) and 97dB for satellite (35dBuV IMA3)—strong enough for 4K streaming in busy homes, with a 20dB test point for quick signal checks.
  • Noise-Busting Reliability: >12dB return loss blocks echoes and interference, while F-Type connectors ensure secure, weather-tough fits—Foxtel #F31011 approved for Australian pay TV setups.
  • Easy-Peasy Install: Mounts anywhere with included screws; low power draw (170mA @12V, 120mA @18V) means it's efficient and safe—installation manual guides you step-by-step.
  • Versatile for All: Perfect for Multistacker systems in homes, apartments, or businesses—compact design saves space, and it's ready to handle your growing TV needs.
View AllClose

Manufacturer specifications

Technical Sheet VIEW PDF
Installation Manual VIEW PDF
Type Active Taps

Product details and specifications from Bitek product data.
