Description

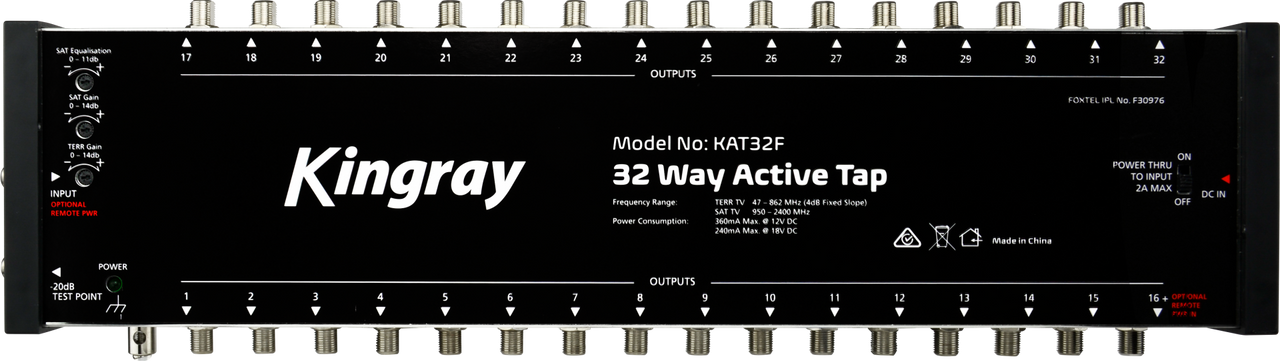

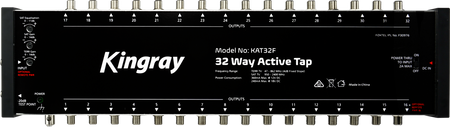

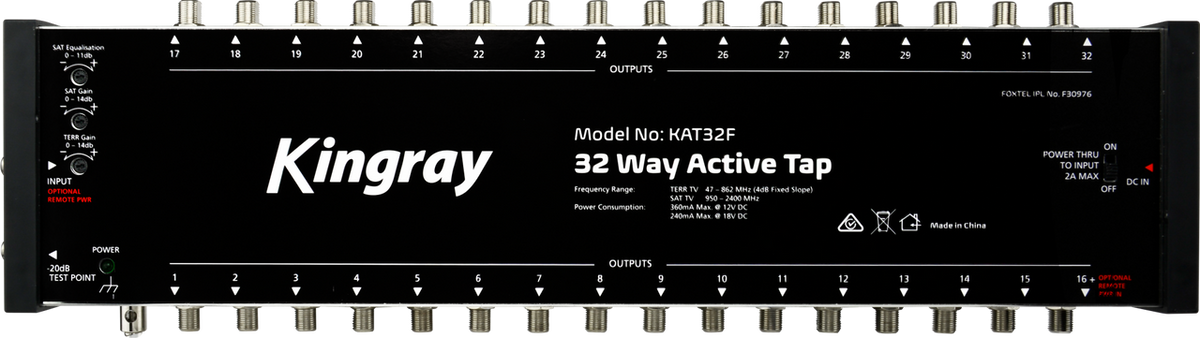

The Kingray KAT32F Active Tap is specifically designed for the distribution of terrestrial and satellite signals in a Multistacker installation. It features high output with adjustable gain and equalisation control.
Features:
- Frequency Range of 47-862 MHz & 950-2400 MHz
- 1 Input, 32 Outputs
- 10-14dB Maximum Gain @ 47-862 MHz
- 14dB Maximum Gain @ 950-2400 MHz
- 14dB Gain Control for both Terrestrial & Satellite
- Fixed 4dB Equalisation for Terrestrial
- 11dB Equalisation Control for Satellite
- 20dB Test Point
- Maximum Output Level of 96dB for Terrestrial (60dBuV IMA3 @ EN60728-5)
- Maximum Output Level of 96dB for Satellite (35dBuV IMA3 @ EN60728-3)
- Return Loss >12dB
- Connectors: F-Type
- Power Consumption: 360mA Max. @ 12V DC
- Power Consumption: 240mA Max. @ 18V DC
- Operating Voltage: 12V DC 2A
- Maximum of 2A power can be sent to the RF input via the power through switch
- Can be remotely powered with the use of a power injector (PIK2400) & suitable power supply
- Suitable Power Supply: PSK18M, PSK124F or PSK183F
- Foxtel Approved IPL #F30976
Inclusions:
- 32 Way Active Tap
- Installation Manual
- Mounting Screws

Product details
Turn your whole home or building into a TV haven with the Kingray KAT32F 32-Way Active Tap—a supercharged splitter that amps and shares free-to-air (FTA) and satellite signals so everyone gets great viewing, no matter the room. Covering 47-862 MHz for local channels and 950-2400 MHz for satellite extras, it's made for Multistacker systems (like stacking signals for a mega-network), with simple dials to boost and balance—up to 10-14dB gain for FTA or 14dB for satellite—so distant spots like the garage or top floor stay as clear as the lounge. High-output muscle (96dB for both bands) powers big setups like large families, apartment towers, or office break rooms, and the 20dB test point lets you spot-check strength in seconds.
Foxtel-approved (IPL #F30976) for easy Australian pay TV compliance, it uses tough F-Type connectors and powers up locally (12V/18V DC) or remotely with an injector (PIK2400) and supply (like PSK18M)—sending 2A back to your antenna too. Slim and wall-mount ready (screws included), it's newbie-friendly: plug in, twist knobs, and enjoy HD/4K everywhere. Low return loss (>12dB) nixes noise for sharp pics and true sound. Big coverage, small effort—Kingray makes massive TV sharing feel totally doable!
Key Features:
-
Dual-Band Signal Surge: Spans 47-862 MHz for FTA TV and 950-2400 MHz for satellite—like a signal pump that lifts weak feeds to 10-14dB gain for FTA or 14dB for satellite, keeping far rooms front-and-center clear.
-
32-Way Balanced Branch: One input to 32 outputs with 14dB adjustable gain for both—fair-share dials prevent hot/cold spots in huge networks.
-
Easy Balance Tweaks: Fixed 4dB equalization for FTA (holds locals steady) and 11dB control for satellite (custom-fines premium)—knobs make it simple to dial in perfection.
-
Power Made Flexible: Uses 360mA at 12V or 240mA at 18V; remote via PIK2400 injector and PSK18M supplies—plus 2A pass-through switch for antenna power, no cords everywhere.
-
Robust Signal Strength: Reaches 96dB max for FTA (60dBuV IMA3) and satellite (35dBuV IMA3)—built for 4K in packed homes, with 20dB test point for fast fixes.
-
Clean Connections: >12dB return loss kills echoes; F-Type ports grip secure—Foxtel IPL #F30976 approved for pro pay TV in Oz.
-
Plug-and-Play Mount: Fits snug with included screws; manual spells it out—low-power and efficient for homes, rentals, or mid-size spots.
View AllClose
Manufacturer specifications
| Technical Sheet |
VIEW PDF |
| Installation Manual |
VIEW PDF |
| Type |
Active Taps |
Product details and specifications from Bitek product data.
