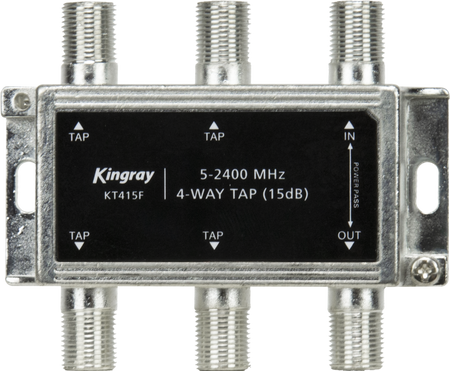

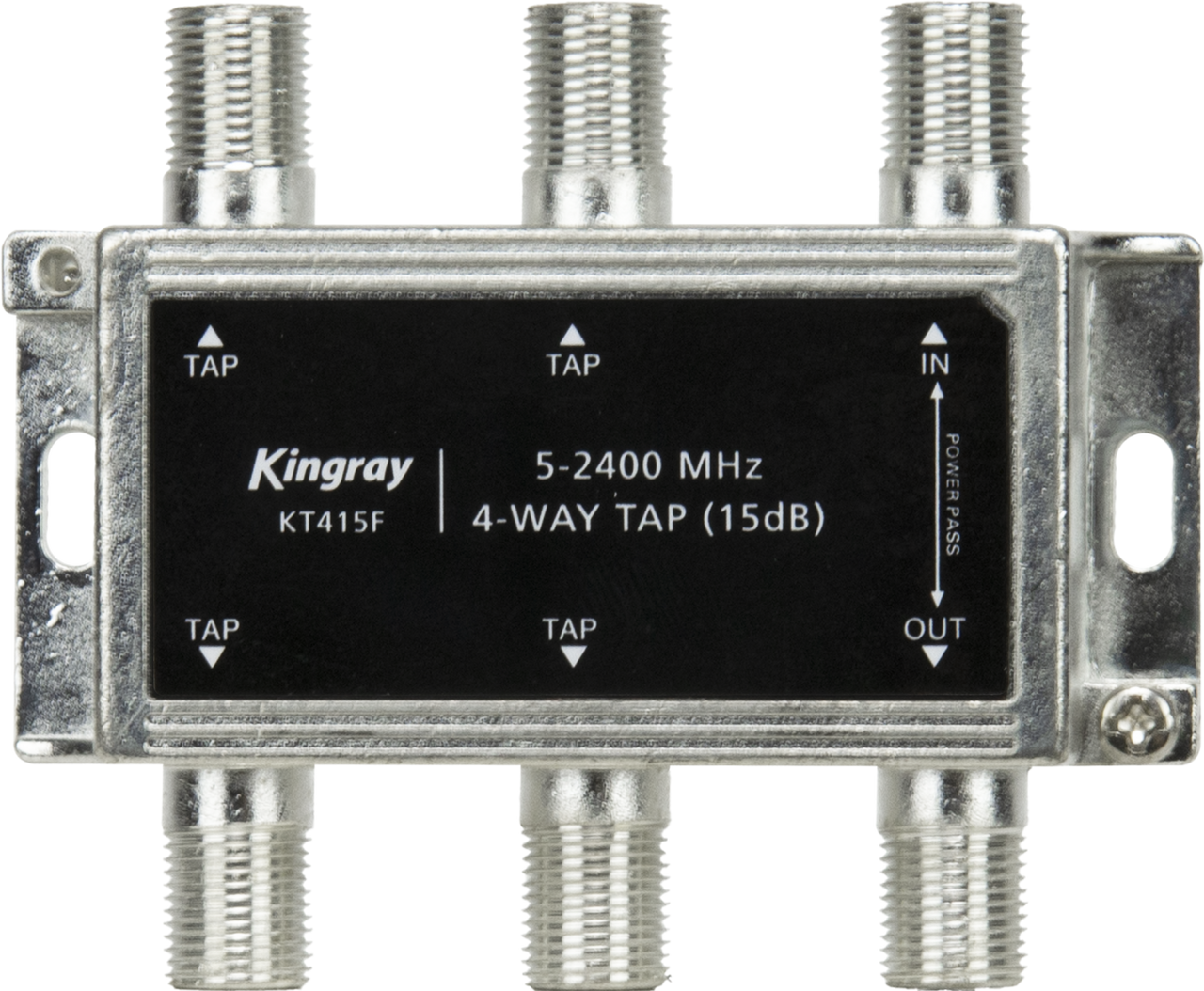

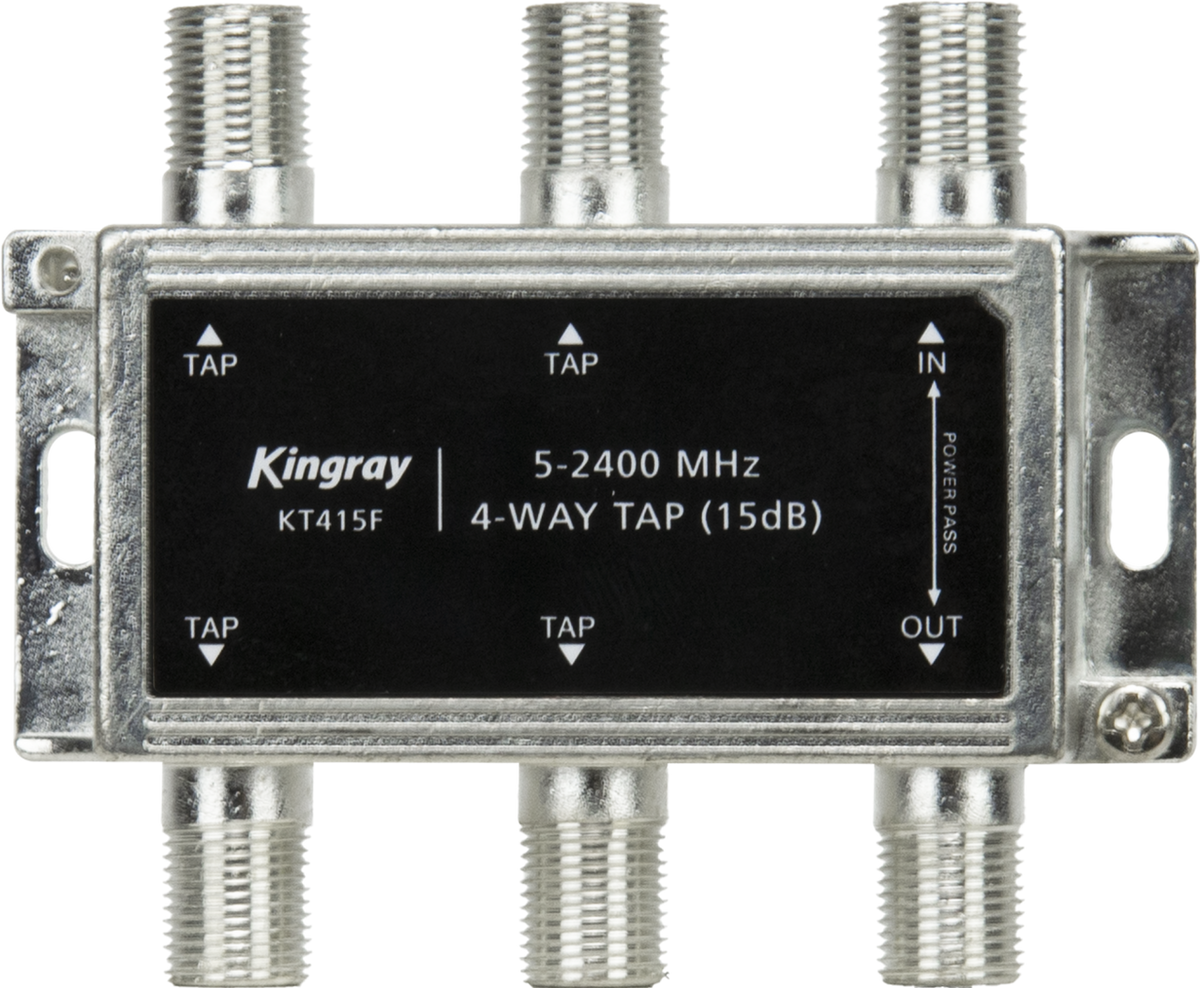

Kingray 4 Way 15dB Tap, Power Pass Through Port, 5-2400 MHz

In stock
SKU: 11MKT415F
Regular price $9.38 AUD inc. GST
Free delivery over $150, $15 flat rate below
Dispatched in 1–2 business days
14-day returns & refunds

Bulk quantities, price-on-application lines or technical questions: we usually reply the same business day.

Trade account holders get tiered pricing applied automatically at checkout. Open a trade account or get in touch.

Description

The Kingray passive tap series are designed for peak performance across the entire terrestrial & satellite bands up to 2400 MHz. These A class passive taps are compact in design with excellent screening characteristics & are Foxtel Approved.

Features:

  • Frequency Range 5-2400 MHz
  • 1 Input
  • 4 Tap Outputs
  • 15dB Tap Loss
  • 1 Power Pass Through Port
  • 2A DC Maximum Throughput
  • Insertion Loss: 3dB @ 5 MHz, 4.5dB @ 2400 MHz via Throughput Port
  • Return Loss: >12dB
  • Connectors: F-Type
  • Foxtel Approved IPL # F30955

Inclusions:

  • KT415F Power Pass Tap
  • Mounting Screws

Foxtel Approved

Product details

Achieve balanced, high-fidelity signal splitting with the Kingray KT415F 4-Way 15dB Tap, a top-tier A-class passive device that shines in distributing terrestrial and satellite signals across 5-2400 MHz—delivering consistent, noise-free performance for free-to-air digital TV, Foxtel pay TV, or integrated broadband networks. This sleek F-Type tap boasts one input splitting to four optimized tap outputs with exact 15dB attenuation, providing moderate signal reduction for mid-range runs while the power pass-through port accommodates 2A DC to effortlessly power inline amplifiers or mastheads. Tailored for MATV headends, townhouses, or expanding home systems, its exceptional screening eliminates EMI/RFI interference, and ultra-low insertion loss (3dB at 5 MHz, 4.5dB at 2400 MHz) combined with >12dB return loss ensures vibrant 4K/8K broadcasts and lossless audio throughout your space.

Foxtel-approved (#F30955) for seamless Australian compliance, the KT415F's compact zinc die-cast enclosure offers superior durability and a minimalist profile that mounts cleanly in walls or racks, with included screws for rapid deployment. From family media centers to boutique hotel distributions, this tap fuses precision engineering, space-smart design, and installer-friendly features—empower your network with Kingray's elite passive technology for enduring clarity and connectivity!

Key Features:

  • Expansive Frequency Spectrum: 5-2400 MHz bandwidth handles VHF/UHF TV, satellite, and high-speed data signals for all-encompassing HD/4K free-to-air, pay TV, and coax-over-internet needs.
  • Precise 4-Way Tap Distribution: One input to four outputs with 15dB targeted loss, promoting uniform signal delivery and avoiding hotspots in moderate-coverage installations.
  • Robust DC Power Handling: Integrated pass-through port supports up to 2A maximum throughput, enabling remote amp powering without compromising video or audio integrity.
  • Exceptional Signal Purity: Minimal insertion loss of 3dB at 5 MHz and 4.5dB at 2400 MHz through the throughput port, plus >12dB return loss for echo-free, high-contrast transmission.
  • Foxtel-Certified Shielding: #F30955 approved with A-class interference rejection, ensuring reliable operation in compliant pay TV or community antenna environments.
  • Tough F-Type Integration: F-Type connectors throughout a corrosion-proof zinc die-cast body for dependable, weather-hardy connections in diverse setups.
  • Streamlined Mounting: Comes with screws for effortless wall or rack attachment, suiting quick residential tweaks or professional expansions.

View AllClose

Manufacturer specifications

Type Passive Taps

Product details and specifications from Bitek product data.
