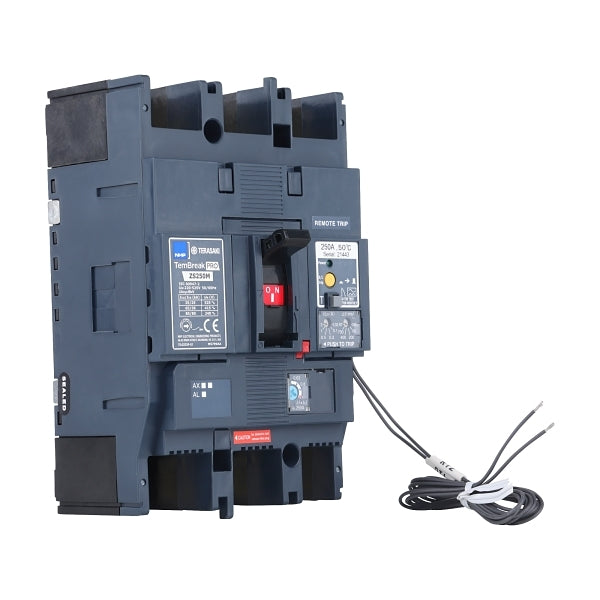

Terasaki TemBreak PRO ELCB 250 Frame 65kA 30mA 3A 3P 250A Adj. Thermal Fix. Magnetic
Regular price
$0.00 AUD
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
Power switching circuit breaker
Electrical
Rated current In250 A
Number of poles3
Max. rated operation voltage Ue AC525 V
Rated ultimate short-circuit breaking capacity lcu at 415 V, 50 Hz65 kA
Rated service short-circuit breaking capacity lcs at 415 V, 50 Hz36 kA
Type of protection trip unitEarth leakage circuit breaker
Trip curveAdj. thermal, fixed magnetic
Frame size rating250 A
Long time overload protection adjustment range160-250 A
Position of connection for main current circuitFront side
Integrated earth fault protectionYes
Rated frequency50-60 Hz
Rated insulation voltage Ui525 V
Suitable for isolationYes
Rated impulse withstand voltage Uimp8 kV
Over voltage categoryIV
Reverse connection of supply possibleYes
AC power loss per pole at In18.33 W
Electrical life at Un, In (service cycles)10000 cycles
Type of electrical connection of main circuitBolt connection
Power loss55 W
Mechanical
DIN rail (top hat rail) mounting optionalYes
Mechanical life (service cycles)30000 cycles
Max. vibration acceleration19 m/s²
Max. vibration frequency, operational16.7 Hz
Max. vibration duration12 min
Dimensions
Cable cross section (range)35-185 mm²
Height165 mm
Width90 mm
Pole connection pitch35 mm
Built-in depth68 mm
Depth (toggle included)92 mm
Weight1.5 kg
Environment
Pollution degree3
Rated surrounding temperature without derating50 °C
Rated temperature-5-70 °C
Maximum operating temperature70 °C
Storage temperature-10-70 °C
Allowable relative humidity0-85 %
Max. altitude before derating2000 m
Certificates/Approvals
StandardAS/NZS IEC 60947.2
