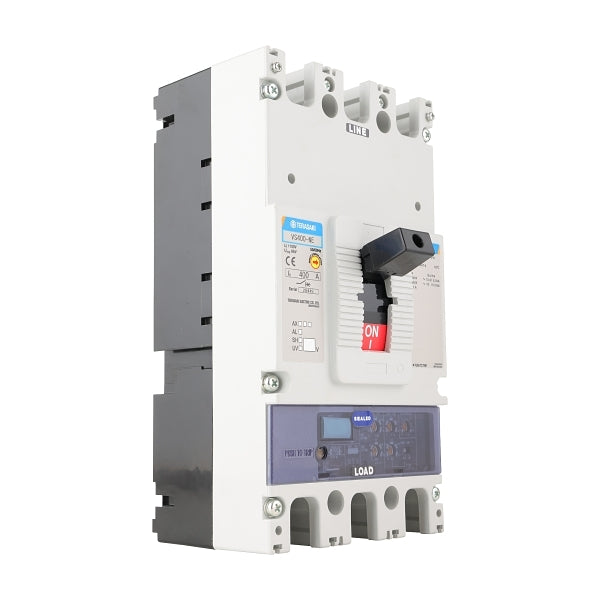

Terasaki TemBreak 1 MCCB 1000V AC 18kA 3Pole 400A Electronic
Regular price
$0.00 AUD
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
Power switching circuit breaker
Electrical
Rated current In400 A
Number of poles3
Max. rated operation voltage Ue AC1100 V
Type of protection trip unitElectronic release
Trip curveLSI
Frame size rating400 A
Long time overload protection adjustment range160-400 A
Instantaneous protection adjustment range1200-4800 A
Rated frequency50-60 Hz
Rated insulation voltage Ui1100 V
Rated short circuit breaking capacity, Icu 1000V AC18 kA
Rated short circuit breaking capacity, Ics 1000V AC13.5 kA
Short time protection adjustment range800-4000 A
Rated impulse withstand voltage Uimp8 kV
Reverse connection of supply possibleNo
AC power loss per pole at In25 W
Electrical life at Un, In (service cycles)1000 cycles
Mechanical
Cable cross section (range)35-185 mm²
Mechanical life (service cycles)7000 cycles
Vibration acceleration (Max)19 m/s²
Vibration frequency, operational (Max)16.7 Hz
Vibration duration (Max)12 min
Dimensions
Height260 mm
Width140 mm
Pole connection pitch45 mm
Built-in depth103 mm
Depth (toggle included)145 mm
Weight5 kg
Environment
Pollution degree3
Rated surrounding temperature without derating45 °C
Maximum operating temperature70 °C
Storage temperature-10-70 °C
Allowable relative humidity0-86 %
Altitude before derating (Max)2000 m
