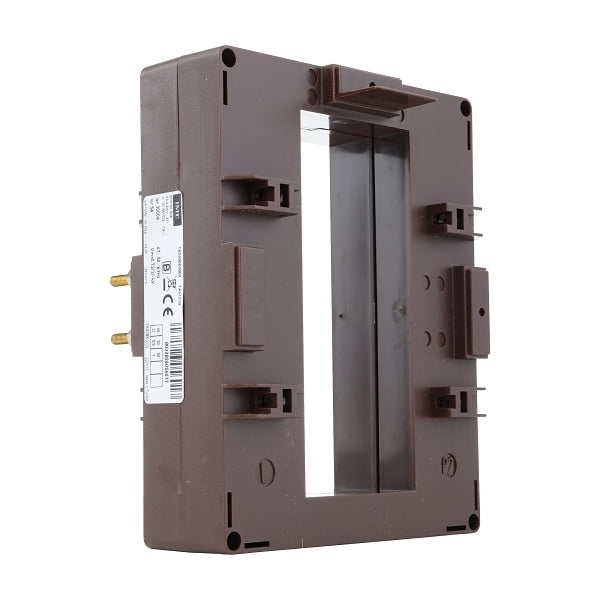

IME TAS127 Solid Core Current Transformer 2000A/5A 127 x 54mm 30VA Class 1, 25VA Class 0.5
IME TAS127 Solid Core Current Transformer 2000A/5A 127 x 54mm 30VA Class 1, 25VA Class 0.5
NHP

IME TAS127 Solid Core Current Transformer 2000A/5A 127 x 54mm 30VA Class 1, 25VA Class 0.5

Price on application
SKU: TAS127B20005A
$0.00 AUD

Got questions?

Feel free to get in touch.

Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.

Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.

Component Type (ETIM Class)
Current transformer
Electrical
Primary rated current2000 A
Secondary rated current5 A
Rated operating frequency47-63 Hz
Max. operating voltage (Umax)0.72 V
Rated short time thermal current Ith (x primary current)90 kA
Rated continuous thermal current Icth (x primary current)90 kA
Accuracy class0.5
Insulation class (IEC 61869-1, 61869-2)B
Security factor5
Rated burden, class 0.525 VA
Rated burden, class 130 VA
Power loss23 W
Over current limiting factorFS 5
Secondary rated apparent power25 VA
CalibratedNo
Construction
Current transformer typeSolid core
Material housingPolycarbonate (PC)
ModelThrough-feed current converter
With shock protectionYes
Snap mountingNo
Secondary connectionScrew connection
Number of primary inputs1
Environment
Storage temperature-40-85 °C
