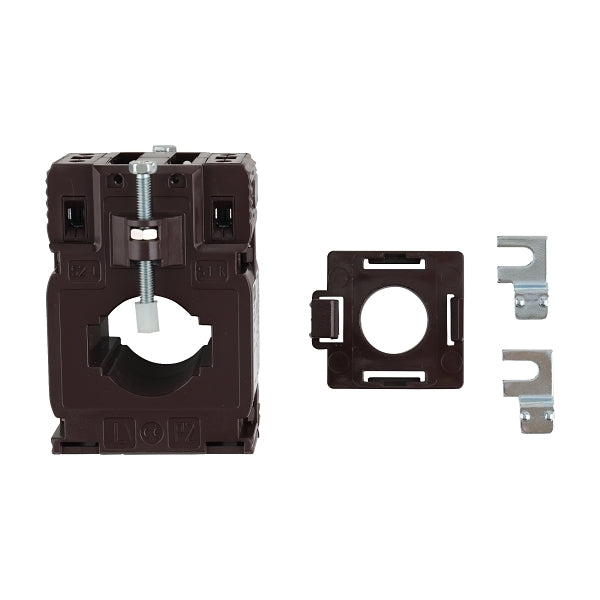

IME TA327 Solid Core Current Transformer 75A/5A 27mm 3VA Class 3, 1.5VA Class 1
IME TA327 Solid Core Current Transformer 75A/5A 27mm 3VA Class 3, 1.5VA Class 1
NHP

IME TA327 Solid Core Current Transformer 75A/5A 27mm 3VA Class 3, 1.5VA Class 1

Price on application
SKU: TA327755A
$0.00 AUD

Got questions?

Feel free to get in touch.

Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.

Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.

Component Type (ETIM Class)
Current transformer
Electrical
Primary rated current75 A
Secondary rated current5 A
Rated operating frequency47-63 Hz
Max. operating voltage (Umax)0.72 V
Rated short time thermal current Ith (x primary current)4.5 kA
Rated continuous thermal current Icth (x primary current)4.5 kA
Accuracy class1
Insulation class (IEC 61869-1, 61869-2)B
Security factor5
Rated burden, class 11.5 VA
Power loss7 W
Over current limiting factorFS 5
Secondary rated apparent power1.5 VA
CalibratedNo
Construction
Current transformer typeSolid core
Material housingPolycarbonate (PC)
ModelThrough-feed current converter
With shock protectionYes
Snap mountingYes
Secondary connectionScrew connection
Number of primary inputs1
Dimensions
Opening diameter27 mm
Environment
Storage temperature-40-85 °C
