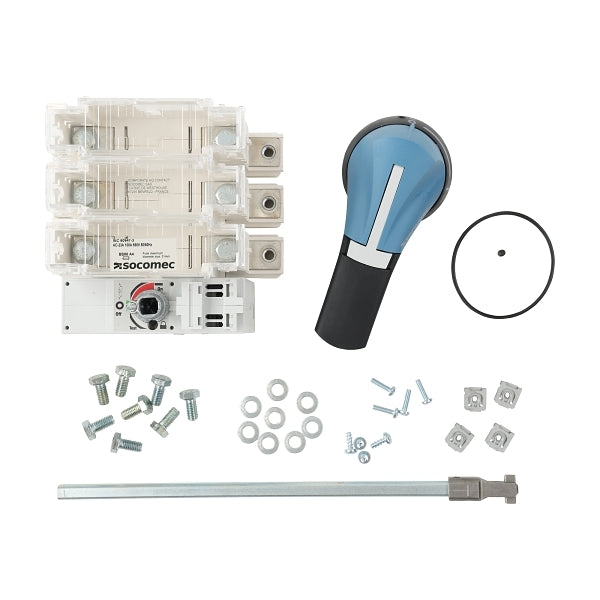

Socomec SSF Fuse Switch kit, w/ External Handle, suits BS fuses, 3P 100A
Regular price
$0.00 AUD
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
Fuse switch disconnector
Electrical
Rated current100 A
Max. rated operation voltage Ue AC690 V
Max. rated operation voltage Ue DC440 V
Rated permanent current at AC-21, 400 V100 A
Rated permanent current at AC-23, 400 V100 A
Rated operation current Ie at DC-21, 220 V100 A
Rated operation current Ie at DC-21, 440 V100 A
Rated operation current Ie at DC-22, 220 V100 A
Rated operation current Ie at DC-22, 440 V100 A
Rated operation current Ie at DC-23, 440 V100 A
Short time withstand current Icw, 1 sec80 kA
Rated impulse withstand voltage Uimp8 kV
Rated insulation voltage Ui750 V
Rated operation power at AC-23, 400 V51 kW
Construction
Degree of protection (IP), front sideIP30
Mechanical
Suitable for fusesShape A4
Mechanical life (service cycles)10000 cycles
Dimensions
Height162 mm
Width148 mm
Depth116 mm
