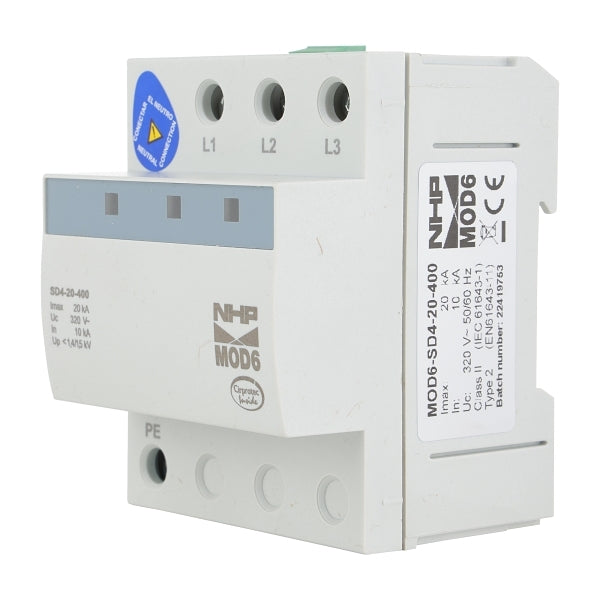

NHP MOD6 Surge Diverter 3Pole plus Neutral 20kA
Regular price
$0.00 AUD
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
Surge protection device for power supply systems
Electrical
Nominal discharge surge current (8/20)10 kA
Max. discharge surge current (8/20)20 kA
Nominal voltage AC400 V
Max. continuous voltage AC320 V
Construction
Mounting methodDIN rail (top hat rail) 35 mm
Construction size4 modular spacing
Degree of protection (IP)IP20
Mechanical
Max. conductor cross section solid (solid, stranded)35 mm²
Max. conductor cross section flexible (fine-strand)25 mm²
