Home » NHP DIN Contactors 40A 4 Normally Open Contacts 240V AC DC Coil

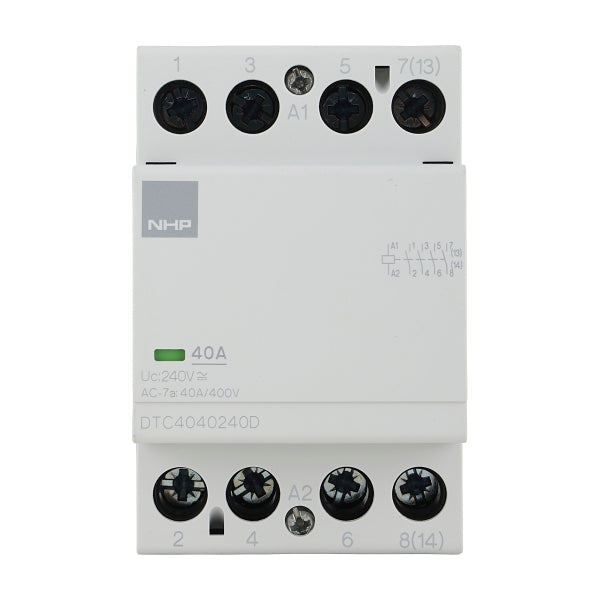

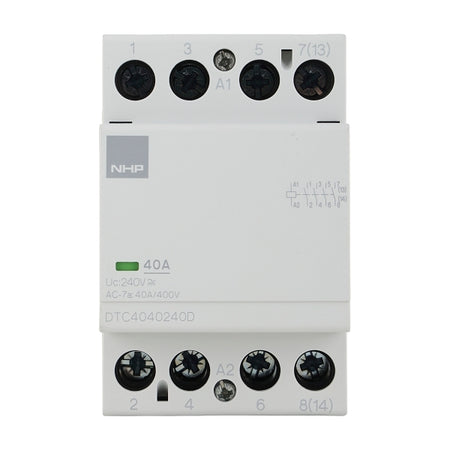

NHP DIN Contactors 40A 4 Normally Open Contacts 240V AC DC Coil
NHP DIN Contactors 40A 4 Normally Open Contacts 240V AC DC Coil
NHP

NHP DIN Contactors 40A 4 Normally Open Contacts 240V AC DC Coil

SKU: DTC4040240D
Price on request
Free delivery over $150, $15 flat rate below
Dispatched in 1–2 business days
14-day returns & refunds

Bulk quantities, price-on-application lines or technical questions: we usually reply the same business day.

Trade account holders get tiered pricing applied automatically at checkout. Open a trade account or get in touch.

Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.

Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.

Component Type (ETIM Class)
Power contactor, AC switching
Electrical
Number of normally open contacts as main contact4
Number of normally closed contacts as main contact0
Rated operation current Ie at AC-3, 400 V22 A
Rated operation power at AC-3, 400 V11 kW
Rated operation current Ie at AC-1, 400 V40 A
Max. rated operation voltage Ue AC500 V
Voltage type for actuatingAC/DC
Control supply voltage Us at AC 50HZ240 V
Control supply voltage Us at DC240 V
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Control supply voltage Us at AC 60HZ240 V
Power consumption, AC coil pickup4.5 VA
Power consumption, AC coil hold-in4.5 VA
Power consumption, DC coil pickup5 W
Power consumption, DC coil hold-in5 W
Type of electrical connection of main circuitScrew connection
Construction
Degree of protection (IP)IP20
Mounting methodDIN rail mounting
Dimensions
Height85 mm
Width54 mm
Depth58 mm
Weight0.41 kg
