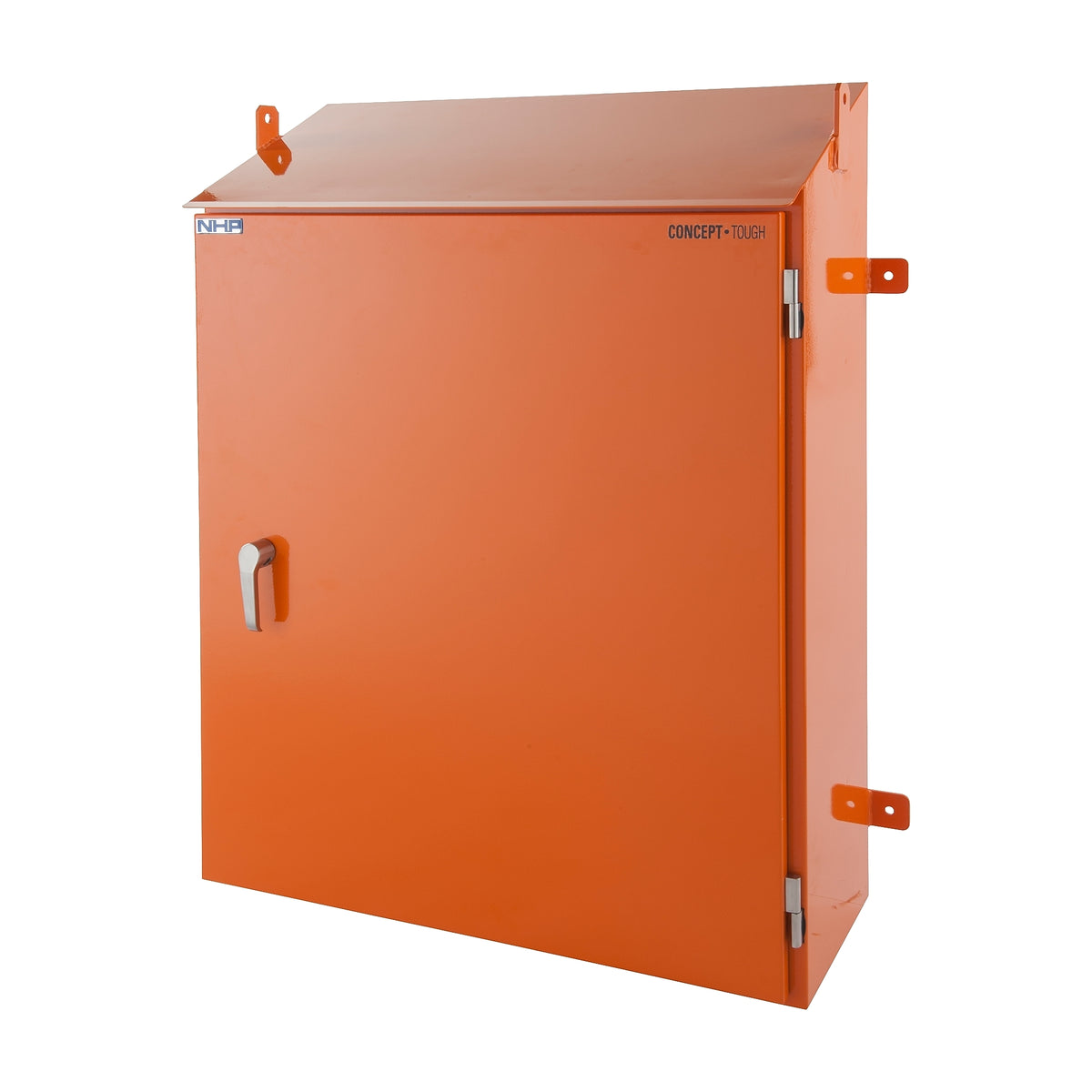

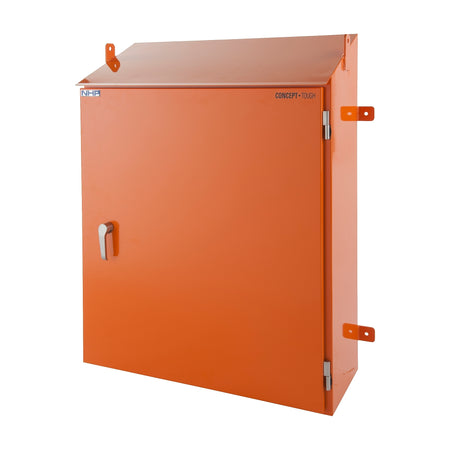

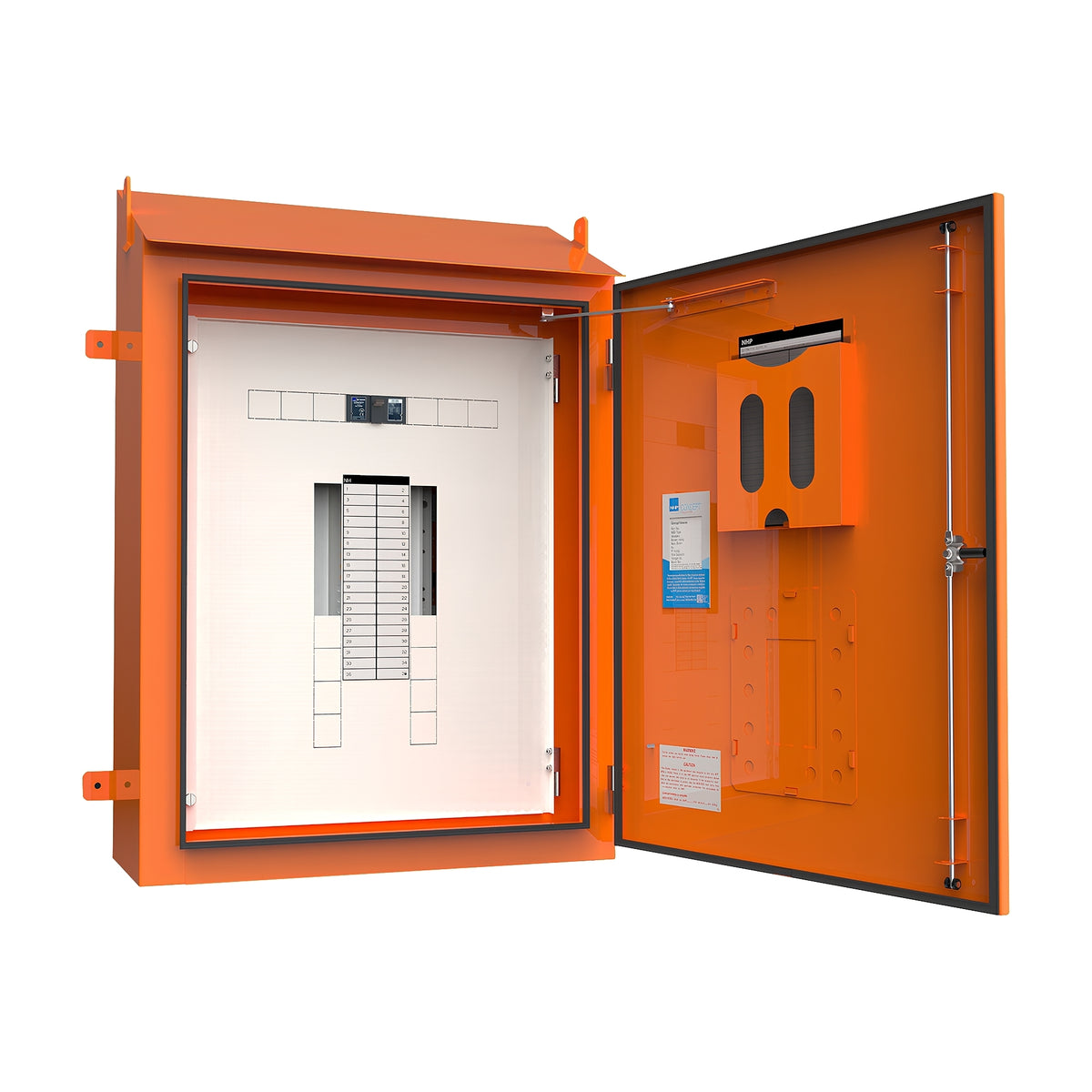

NHP Concept Tough Panelboard Size 2 1000mm DinT 24 Way 250A Mains Switch
Regular price
$0.00 AUD
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
Small distribution board
Electrical
Rated current In250 A
Number of outgoing ways24
Number of poles, 18mm pitch24
Max. rated operation voltage Ue AC415 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp6 kV
Number of poles main switch3
Main switch rated current250 A
Neutral terminal blockYes
Neutral bar rated current165 A
Earthing terminal blockYes
Construction
Spare DIN equipment space (poles)18
Material housingSteel
Material thickness2 mm
ColourOrange
Degree of protection (IP)IP66
Type of coverDoor
Material thickness cover2 mm
With lockYes
Mounting methodSurface mounted (plaster)
Mechanical
Impact strengthIK10
Dimensions
Height1000 mm
Width800 mm
Depth324 mm
