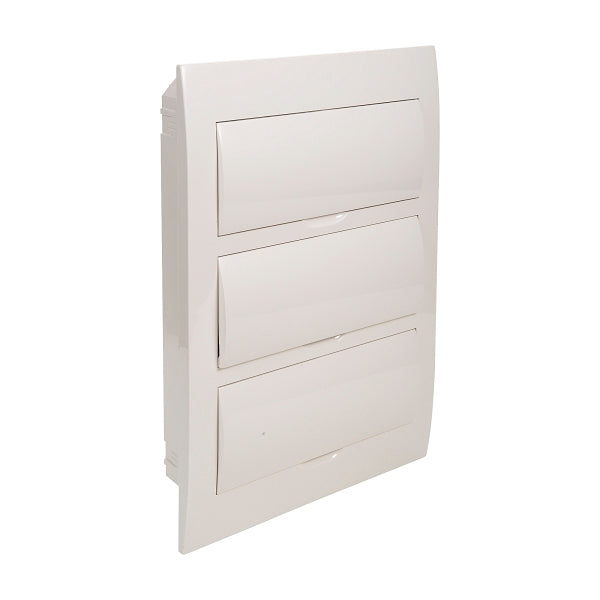

NHP MOD6 CSB Insulated Loadcentre 36 Way Din Flush White Door
Regular price
$0.00 AUD
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
Small distribution board
Electrical
Rated current In100 A
Number of outgoing ways36
Number of poles, 18mm pitch36
Max. rated operation voltage Ue AC415 V
Rated insulation voltage Ui500 V
Neutral terminal blockYes
Neutral bar rated current100 A
Earthing terminal blockYes
Construction
Spare DIN equipment space (poles)36
DIN-railYes
Number of rows3
Material housingPlastic
ColourWhite
Degree of protection (IP)IP40
Type of coverDoor
Mounting methodRecessed
Dimensions
Width in number of modular spacings12
Height503 mm
Width342 mm
Depth105 mm
Built-in depth76 mm
Built-in height470 mm
Built-in width308 mm
