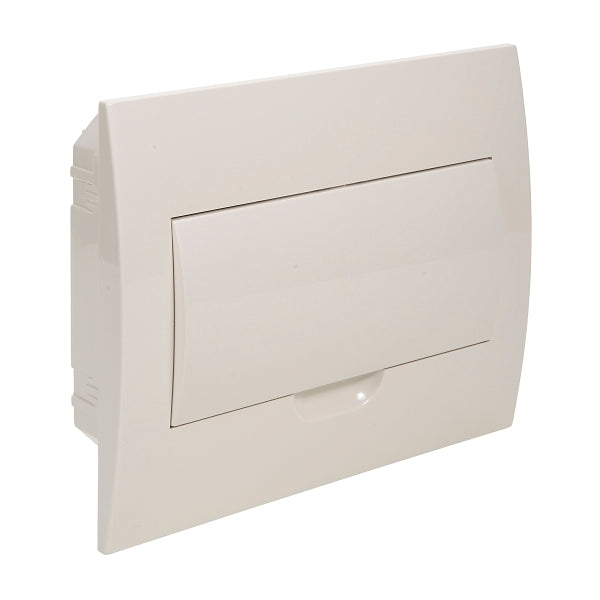

NHP MOD6 CSB Insulated Loadcentre 12 Way Din Flush Door White
Regular price
$0.00 AUD
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
Small distribution board
Electrical
Rated current In100 A
Number of outgoing ways12
Number of poles, 18mm pitch12
Max. rated operation voltage Ue AC415 V
Neutral terminal blockYes
Neutral bar rated current100 A
Earthing terminal blockYes
Construction
DIN-railYes
Number of rows1
Material housingPlastic
ColourWhite
Degree of protection (IP)IP40
Type of coverDoor
Mounting methodRecessed
Dimensions
Width in number of modular spacings12
Height246 mm
Width304 mm
Depth95 mm
Built-in depth66 mm
Built-in height211 mm
Built-in width270 mm
