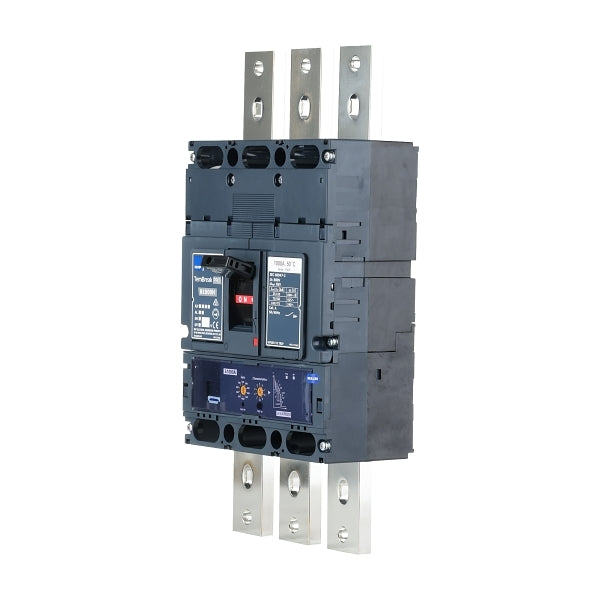

Terasaki TemBreak PRO MCCB 1000 Frame 70kA 3P 1000A Basic Electronic
Regular price
$0.00 AUD
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
Power switching circuit breaker
Electrical
Rated current In1000 A
Number of poles3
Max. rated operation voltage Ue AC690 V
Rated ultimate short-circuit breaking capacity lcu at 415 V, 50 Hz70 kA
Rated service short-circuit breaking capacity lcs at 415 V, 50 Hz50 kA
Type of protection trip unitElectronic release
Trip curveLSI
Frame size rating1000 A
Long time overload protection adjustment range400-1000 A
Position of connection for main current circuitFront side
Instantaneous protection adjustment range2500-10000 A
Rated frequency50-60 Hz
Rated insulation voltage Ui800 V
Suitable for isolationYes
Rated short circuit breaking capacity, Icu 690V AC25 kA
Rated short circuit breaking capacity, Ics 690V AC20 kA
Short time protection adjustment range1000-8000 A
Rated impulse withstand voltage Uimp8 kV
Over voltage categoryIV
Reverse connection of supply possibleYes
AC power loss per pole at In106.67 W
Electrical life at Un, In (service cycles)4000 cycles
Type of electrical connection of main circuitBolt connection
Power loss320 W
Mechanical
Mechanical life (service cycles)10000 cycles
Vibration acceleration (Max)19 m/s²
Vibration frequency, operational (Max)16.7 Hz
Vibration duration (Max)12 min
Dimensions
Height433 mm
Width210 mm
Pole connection pitch70 mm
Built-in depth103 mm
Depth (toggle included)145 mm
Weight11 kg
Environment
Pollution degree3
Rated surrounding temperature without derating45 °C
Rated temperature-5-70 °C
Maximum operating temperature70 °C
Storage temperature-10-70 °C
Allowable relative humidity0-85 %
Altitude before derating (Max)2000 m
Certificates/Approvals
StandardAS/NZS IEC 60947.2
