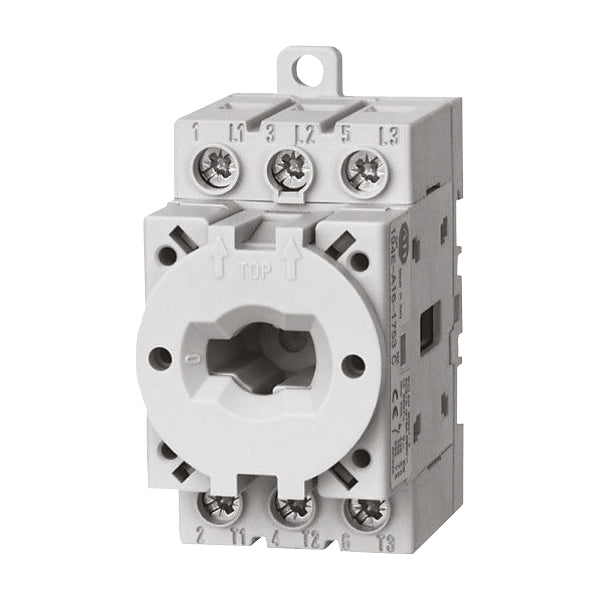

Allen-Bradley 194E Disconnect Switch Body, Base/DIN rail mount 3 Pole 32A

SKU: 194EA321753
Free delivery over $150, $15 flat rate below
Dispatched in 1–2 business days
14-day returns & refunds

Bulk quantities, price-on-application lines or technical questions: we usually reply the same business day.

Trade account holders get tiered pricing applied automatically at checkout. Open a trade account or get in touch.

Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.

Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.

Component Type (ETIM Class)
Switch disconnector
Electrical
Max. rated operation voltage Ue AC690 V
Rated permanent current at AC-21, 400 V32 A
Rated permanent current Iu32 A
Number of poles3
Rated operation power at AC-3, 400 V11 kW
Rated operation power at AC-23, 400 V15 kW
Rated short-time withstand current lcw900 kA
Rated insulation voltage Ui600 V
Rated impulse withstand voltage Uimp8 kV
Type of electrical connection of main circuitScrew connection
Rated operating voltage400-690 V
Conditioned rated short-circuit current Iq15 kA
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Construction
Device constructionBuilt-in device fixed built-in technique
Degree of protection (IP), front sideIP20
Version as main switchYes
Version as maintenance-/service switchYes
Version as emergency stop installationNo
Version as reversing switchNo
Number of switches1
Suitable for distribution board installationNo
Degree of protection (NEMA)Other
Dimensions
Width95 mm
Depth86 mm
Height150 mm
Environment
Rated surrounding temperature without derating60 °C
Storage temperature-40-80 °C
