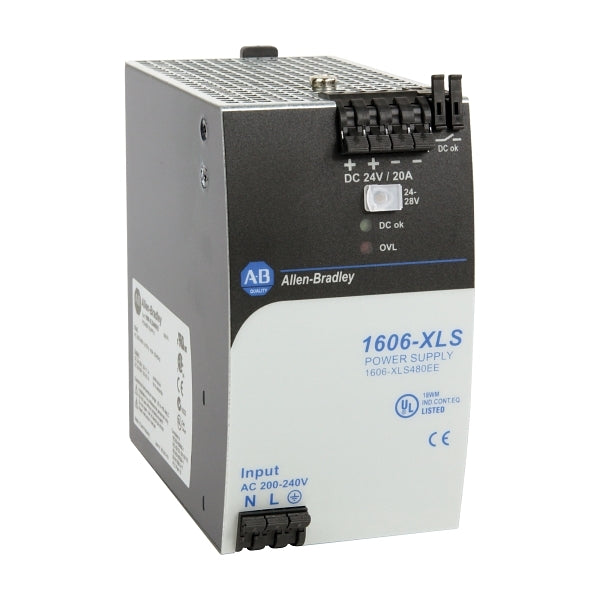

Allen-Bradley 1606 Power Supply HP 1Phase 200 to 240V AC to 24 to 28V DC 480W 20A
Regular price
$0.00 AUD
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Price on application. Pricing on this item moves with supplier rates, so we quote it fresh rather than list a price that goes stale.
Email orders@dzelectricalproducts.com for a current price and availability. Quote the SKU shown on this page and we'll come back to you the same business day.
Component Type (ETIM Class)
DC-power supply
Electrical
Voltage type of supply voltageAC/DC
Frequency50-60 Hz
Max. starting current40 A
1st secondary output voltage24-28 V
Max. output current 120 A
Nominal value output current 120 A
Nominal value output voltage 124 V
Power output480 W
Power consumption28.3 VA
Efficiency94.5 %
Type of electric connectionSpring clamp connection
With LED indicationYes
Secondary voltage adjustableYes
Output voltage stabilizedYes
Construction
Rail mounting possibleYes
Wall mounting possibleYes
Degree of protection (IP)IP20
Direct mounting possibleNo
Degree of protection (NEMA)Other
Dimensions
Width70 mm
Height124 mm
Depth127 mm
Weight0.88 kg
Environment
Operating temperature-25-70 °C
StabilizedYes
