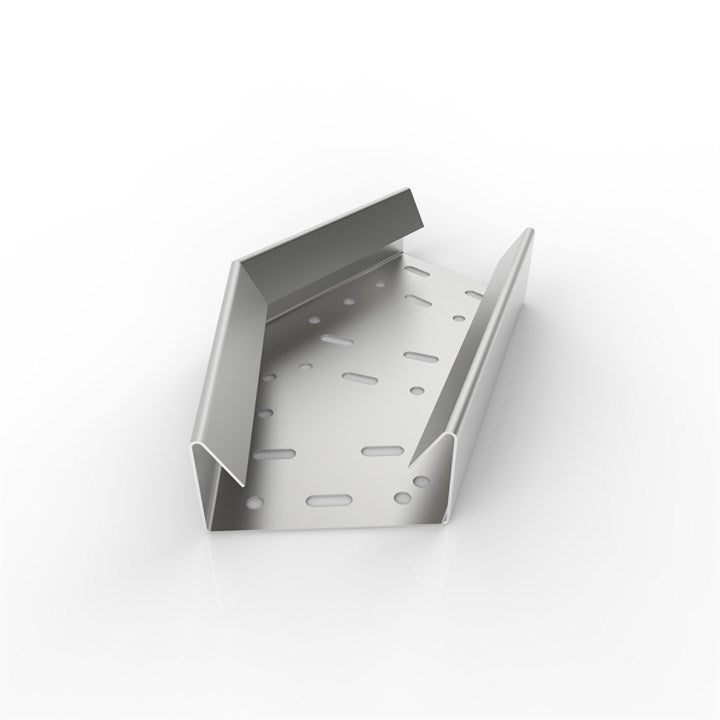

316 stainless steel 150mm 45° flat bend for routing heavy-duty return-flange cable tray around horizontal direction changes.
Product details
Electrix® Heavy Duty Return Flange Cable Tray Flat Bends, in 316L - V4A - 1.4404 stainless steel, are used to change direction during an installation.
This 45° flat bend is compatible with Electrix's 150 mm wide Heavy Duty Return Flange Cable Tray System.
Couplings are sold separately - Electrix recommends 1 x pair of straight couplings (Part No. HRF CO) and 1 x pair of cranked couplings (Part No. HRF CC) for each flat bend.
Optional lids are available for this range.
Manufacturer specifications
| Material Type |
Stainless Steel |
| Material Grade |
316L - V4A - 1.4404 |
| Material Finish |
Dull (2B) |
| Surface Finish (µm Ra) |
< 0.5 |
| Material Thickness (mm) |
1.2 |
| Width (mm) |
150 |
| Wall Height (mm) |
50 |
| Custom Design |
<p>Custom Designs available on request.</p><ul><li>Custom sizes</li><li>Polished or Satin (Brushed) material</li></ul><a href="/en-gb/stainless-steel-the-custom-shop/" target="_blank">Click here to visit The Custom Shop.</a> |
| Standard |
Heavy Duty |
| Wall Type |
Return Flange |
| Wall Height (mm) |
50 |
| Bend Angle |
45° |
| Bend Direction |
Flat |
| For Tray Width (mm) |
150 |
| Pack Quantity |
1 |
| Ideally Suited For |
Offshore, Chemical, Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more |
| Compatible With |
Heavy Duty Return Flange Cable Tray |
| Weight (kg) |
0.79 |
Specifications from Electrix International product data.
