HRF FB45 100 | Heavy Duty Return Flange Tray 45° Flat Bend
HRF FB45 100 | Heavy Duty Return Flange Tray 45° Flat Bend
Electrix

HRF FB45 100 | Heavy Duty Return Flange Tray 45° Flat Bend

In stock
$200.70 AUD inc. GST
Free delivery over $150, $15 flat rate below
Dispatched in 1–2 business days
14-day returns & refunds

Bulk quantities, price-on-application lines or technical questions: we usually reply the same business day.

Trade account holders get tiered pricing applied automatically at checkout. Open a trade account or get in touch.

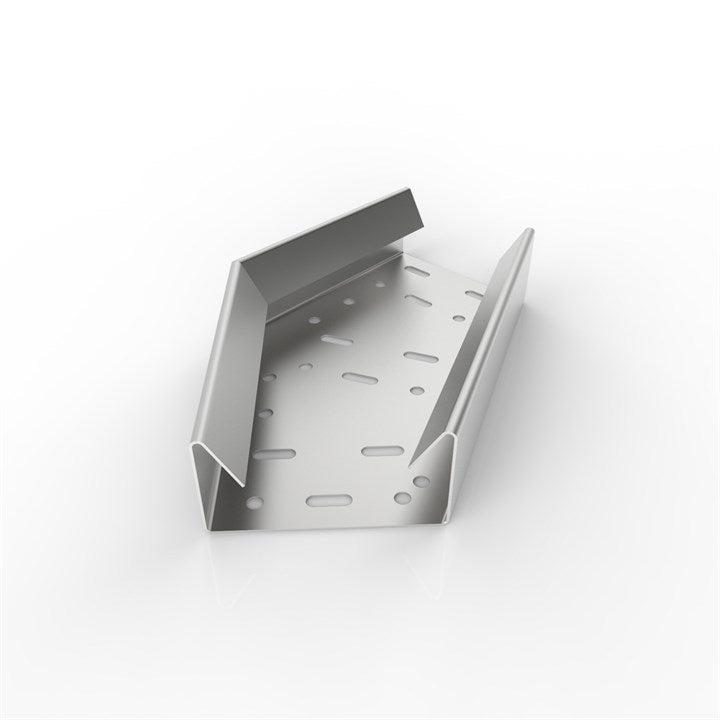

Electrix® Heavy Duty Return Flange Cable Tray Flat Bends, in 316L - V4A - 1.4404 stainless steel, are used to change direction during an installation.

This 45° flat bend is compatible with our 100 mm wide Heavy Duty Return Flange Cable Tray System.

Couplings are sold separately - Electrix recommends 1 x pair of straight couplings (Part No. HRF CO) and 1 x pair of cranked couplings (Part No. HRF CC) for each flat bend.

Optional lids are available for this range.

Material Information
  • Material Type: Stainless Steel
  • Material Grade: 316L - V4A - 1.4404
  • Material Finish: Dull (2B)
  • Surface Finish (µm Ra): < 0.5
  • Material Thickness (mm): 1.2
Dimensions Cable Tray Information
  • Standard: Heavy Duty
  • Wall Type: Return Flange
  • Wall Height (mm): 50
  • Bend Angle: 45°
  • Bend Direction: Flat
For Use With
  • For Tray Width (mm): 100
General Information
  • Ideally Suited For: Offshore, Chemical, Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more
  • Compatible With: Heavy Duty Return Flange Cable Tray
  • Pack Quantity: 1
  • Weight (kg): 0.59
  • Commodity Code: 73269098
  • Disclaimer: Images are representative of range and for illustration purposes only. Please check the full specifications for more information. All dimensions are subject to tolerances - please refer to the technical drawings.
Download product specifications

Manufacturer specifications

Material Type Stainless Steel
Material Grade 316L - V4A - 1.4404
Material Finish Dull (2B)
Surface Finish (µm Ra) < 0.5
Material Thickness (mm) 1.2
Width (mm) 100
Wall Height (mm) 50
Custom Design <p>Custom Designs available on request.</p><ul><li>Custom sizes</li><li>Polished or Satin (Brushed) material</li></ul><a href="/en-gb/stainless-steel-the-custom-shop/" target="_blank">Click here to visit The Custom Shop.</a>
Standard Heavy Duty
Wall Type Return Flange
Wall Height (mm) 50
Bend Angle 45°
Bend Direction Flat
For Tray Width (mm) 100
Pack Quantity 1
Ideally Suited For Offshore, Chemical, Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more
Compatible With Heavy Duty Return Flange Cable Tray
Weight (kg) 0.59

Specifications from Electrix International product data.
