Overview
The CABAC GTB2 Cast Resin Branch Joint is a compact resin joint kit for joining and branching single-core or multi-core telephone, signal and low-voltage power cables up to 1kV. It is designed to provide a durable, water-tight joint with high electrical insulation properties when installed correctly.
Key Features
- Cast resin branch joint kit
- Suitable for low-voltage power cables up to 1kV
- Can be used with telephone, signal and control cables
- Compact water-tight design
- High electrical insulating performance after curing
Typical Applications
Used by electricians and cable jointers for underground, outdoor, industrial, commercial and general low-voltage cable jointing where a sealed resin branch joint is required.
Technical Specifications
| Brand |
CABAC |
| Product Type |
Cast resin branch joint |
| Voltage Rating |
Up to 1kV |
| Model |
GTB2 |
| SKU |
GTB2 |
Product details

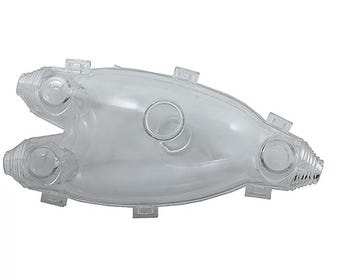

Cast Resin Branch Joint 4x 4-10mm2
Cabac cast resin branch cable joints are ideal for single or multi-core telephone, signal and power cables with up to 1kV rating.
The joints can be used where cables are buried directly in the ground, on cable trays, on rail installations, water submerged (up to 1m depth), or being repaired.
The cast resin is a special unfilled polyurethane that has good adhesive strength to all cable materials. Soft elastic properties ensure equalisation of mechanical stresses caused by different thermal expansion of cable materials. The cast resin has definite advantages over rigid epoxy resin which may be liable to stress cracking.
Features:
• Easy visual check before and during pouring of cast resin
• Pouring spouts to ensure void-free resin fill
• Snap lock and pre-shaped cut-offs to allow quick sealing of mould around the cable
• Complies with VDE standards
• Shelf Life of 3 years at a maximum temperature of 35°C
Technical Notes:
- Cold Temperature: Resins do not cure rapidly in temperatures below 20°C. Either raise the ambient temperature or warm the joint, cable and connectors.
- Curing Time: One hour to cure before energising and 24 hours to fully cure. To be protected from water and elements it needs to be fully cured
Manufacturer specifications
| Cable Accessories Type |
Branch Joint |
| Cable Accessories Technology |
Resin |
| Armoured |
No |
| Min Cable Size (mm2) |
4 |
| Max Cable Size (mm2) |
70 |
| Voltage Rating (kV) |
1 |
| Number Of Cores |
4 |
Product details and specifications from CABAC product data.
