Overview

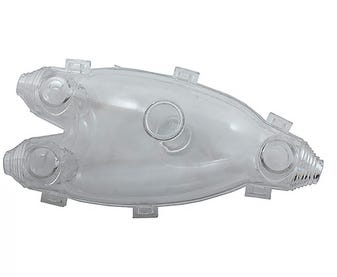

The CABAC GTB1 Cast Resin Branch Joint is a compact cable jointing kit for branching and insulating low-voltage power, telephone and signal cables. It is suitable for single-core and multi-core cables up to 1kV where a sealed resin joint is required.
Key Features
- Compact cast resin branch joint
- Suitable for cables up to 1kV
- Designed for power, signal and telephone cable applications
- Water-tight finished joint when correctly installed
- Provides strong electrical insulation after curing
Typical Applications
Ideal for commercial, industrial and outdoor electrical work, including cable repairs, branch joints, underground cable jointing and low-voltage distribution cable connections.
Technical Specifications
| Brand |
CABAC |
| Product Type |
Cast resin branch joint |
| Voltage Rating |
Up to 1kV |
| Model |
GTB1 |
| SKU |
GTB1 |
Product details
Cast Resin Branch Joint 4x 1.5-2.5mm2
Cabac cast resin branch cable joints are ideal for single or multi-core telephone, signal and power cables with up to 1kV rating.
The joints can be used where cables are buried directly in the ground, on cable trays, on rail installations, water submerged (up to 1m depth), or being repaired.
The cast resin is a special unfilled polyurethane that has good adhesive strength to all cable materials. Soft elastic properties ensure equalisation of mechanical stresses caused by different thermal expansion of cable materials. The cast resin has definite advantages over rigid epoxy resin which may be liable to stress cracking.
Features:
• Easy visual check before and during pouring of cast resin
• Pouring spouts to ensure void-free resin fill
• Snap lock and pre-shaped cut-offs to allow quick sealing of mould around the cable
• Complies with VDE standards
• Shelf Life of 3 years at a maximum temperature of 35°C
Technical Notes:
- Cold Temperature: Resins do not cure rapidly in temperatures below 20°C. Either raise the ambient temperature or warm the joint, cable and connectors.
- Curing Time: One hour to cure before energising and 24 hours to fully cure. To be protected from water and elements it needs to be fully cured
Manufacturer specifications
| Cable Accessories Type |
Branch Joint |
| Cable Accessories Technology |
Resin |
| Armoured |
No |
| Min Cable Size (mm2) |
1.5 |
| Max Cable Size (mm2) |
16 |
| Voltage Rating (kV) |
1 |
| Number Of Cores |
4 |
Product details and specifications from CABAC product data.
