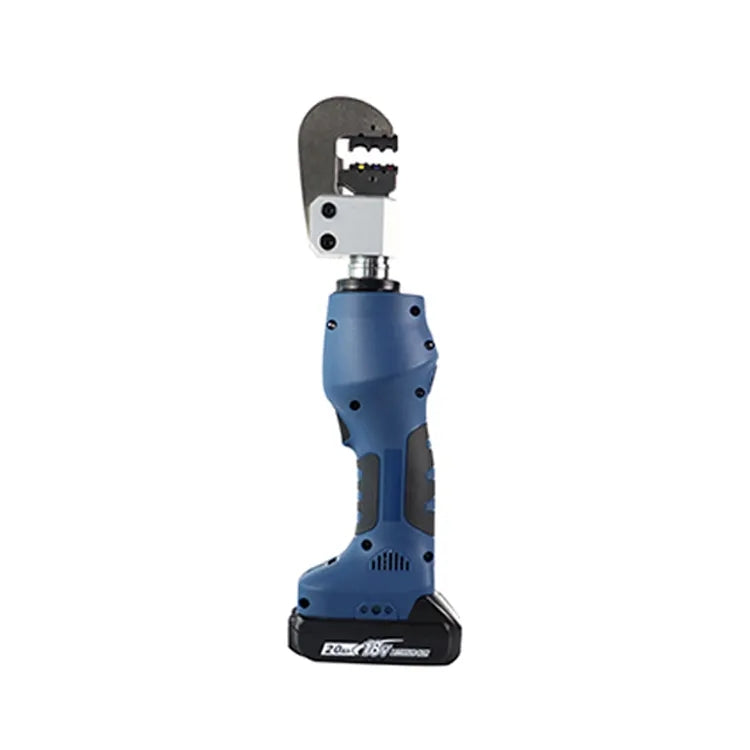

ECT-1510 Battery-Powered 1.5T Hydraulic Terminal Crimping Tool

Introducing the ECT-1510 Battery-Powered Mini Crimping Tool, designed for efficient crimping operations in narrow working spaces. With its lightweight and compact design, this tool offers quick crimping speed and easy operation, making it suitable for various crimping tasks. Its flip top style 360° rotating head provides convenient access to fittings, enhancing flexibility and ease of use. Featuring automatic pressure relief and reset functionality, it ensures smooth and consistent crimps with minimal effort. Powered by a high-performance 18V lithium battery with a power display and fast charger, this tool offers reliable performance and rapid recharging for uninterrupted use. The built-in OLED display, coupled with an intelligent computer chip, provides easy access to information, enhancing user experience. Equipped with two LED working lights, this tool ensures visibility in dark areas, further optimizing work efficiency. Housed in a durable PP plastic case, molded for strength and resistance to pressure and falls, it offers secure storage and transportation. With a crimping force of 1.5t and a crimping capacity ranging from 0.14mm² to 50mm², the ECT-1510 is your ultimate solution for versatile and efficient crimping operations.

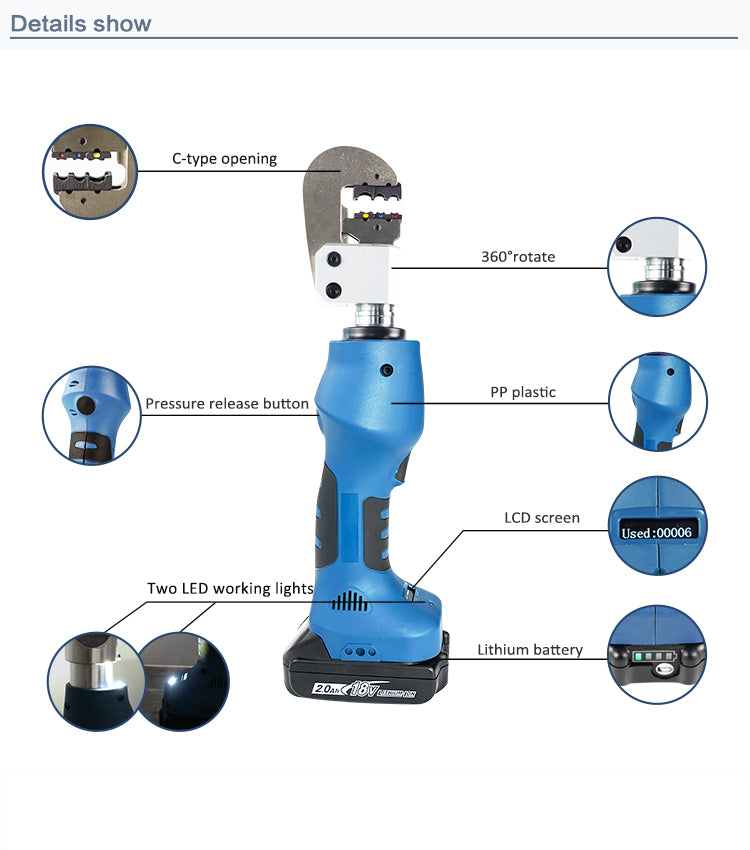

Features:

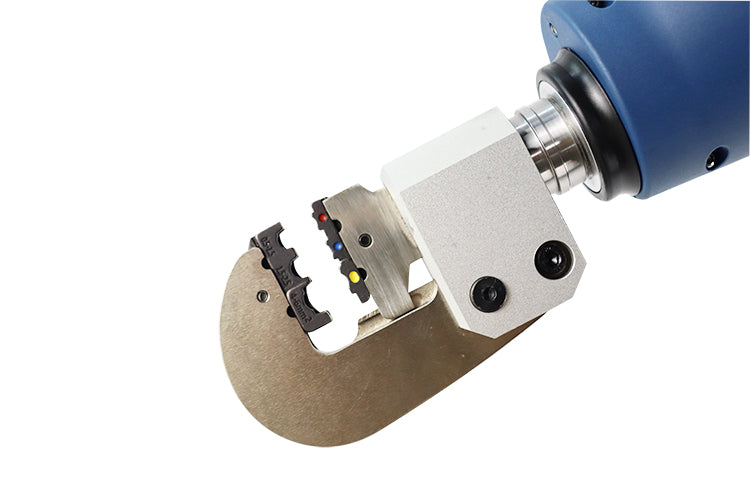

• 360° Head: Flip top style allows for easy access to fittings, with a 360-degree rotating head.
• Automatic pressure relief and automatic reset: Offers automatic pressure relief and reset functionality for added convenience.

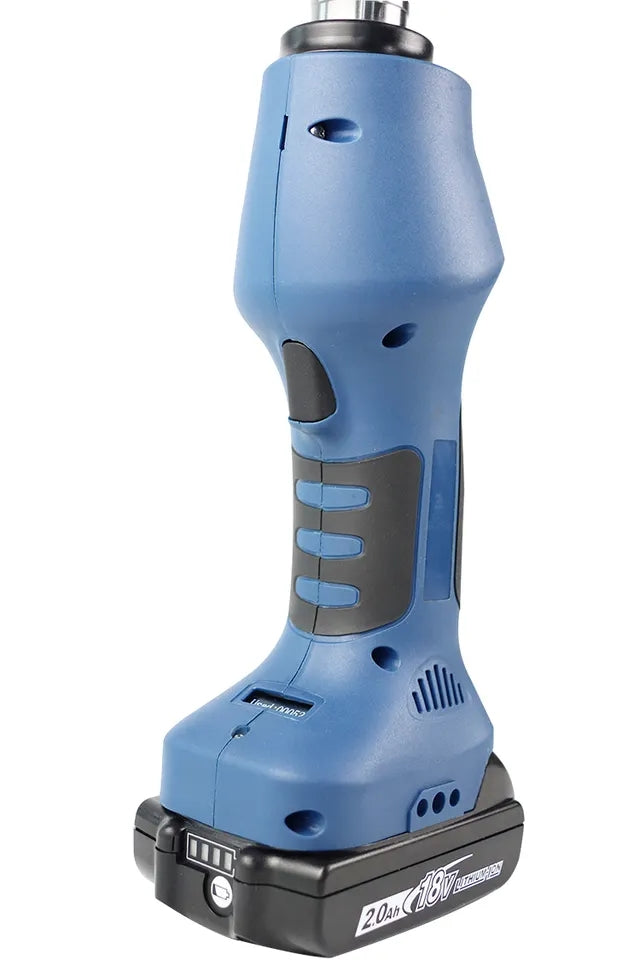

• Lithium battery: High-performance 18V lithium battery with power display, paired with a fast charger for quick recharging.

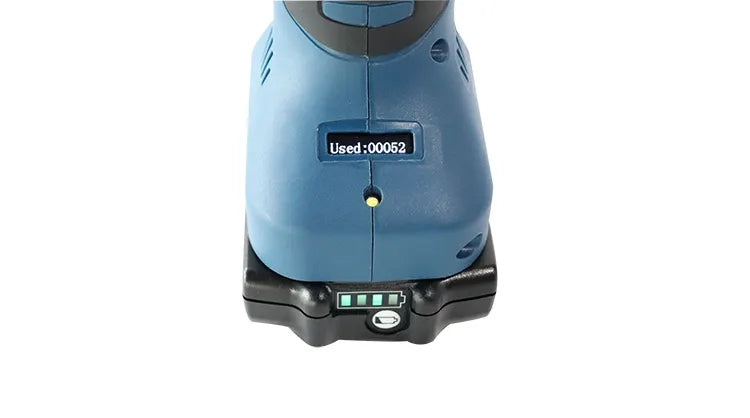

• OLED: Features a built-in intelligent computer chip and an OLED display for easy information reading.
• LED lights: Equipped with two LED working lights to facilitate work in dark areas.
• PP Plastic case: Housing and carrying case crafted from PP plastic, designed for integrated forming and resistant to pressure and falls.

Specifications:

• Crimping Force: 1.5t
• Stroke: 10mm
• Oil Reservoir: 50ml
• Crimping Capacity: 0.14-50mm²
• Net Weight: 2.12kg
• Packing Case: Plastic case
• Standard Dies: See Below
• Package Size: 59 x 51 x 14cm

Warranty - 18 months after date of purchase excluding head and battery

Optional - 2 x Makita Compatible 4.0Ah 18v batteries & Charger

Datasheet

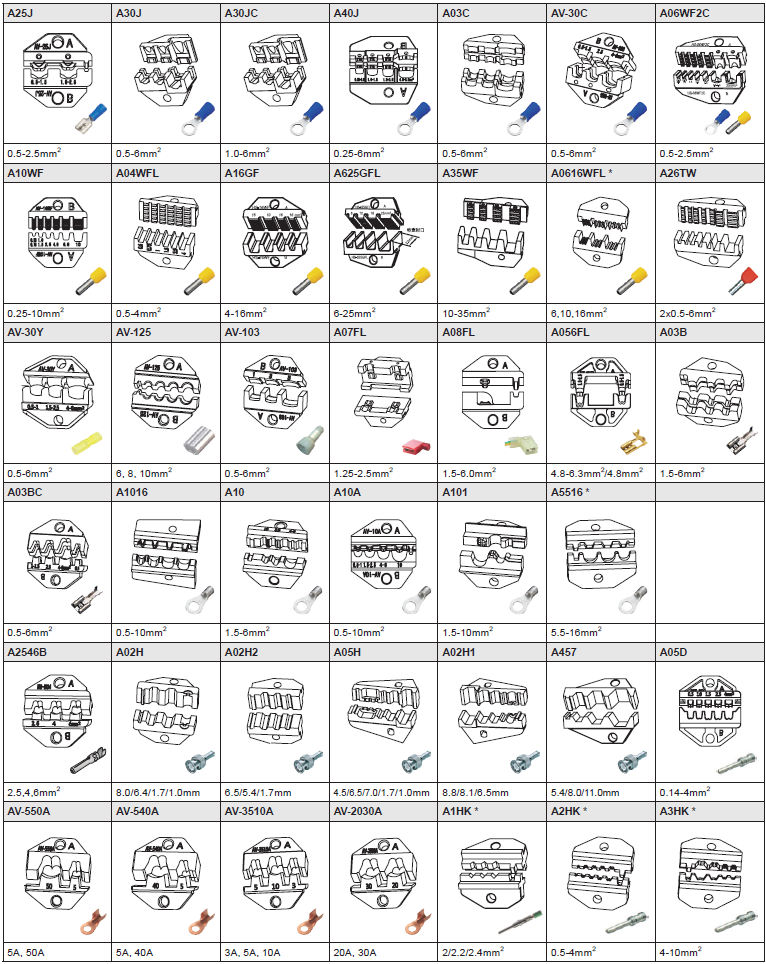

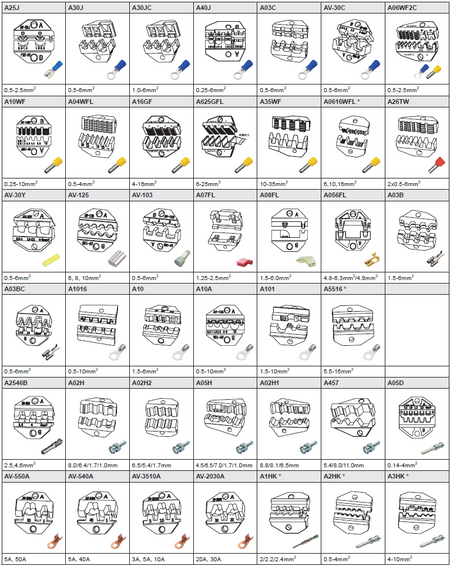

Dies Table
